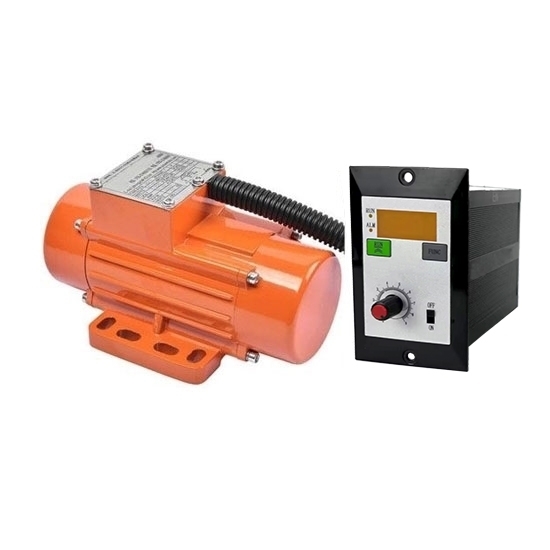

80W 24 Volt DC Brushless Vibrating Electric Motor With Controller

80W 24 Volt DC Brushless Vibrating Electric Motor With Controller
80W 24 Volt DC Brushless Vibrating Electric Motor With Controller
0 reviews • Write a review
from
$596.47
Ex Tax: $596.47
  • Stock: In Stock
  • Model: RDDLZ-80DCBVM-2414
  • Weight: 1.00
  • SKU: RDDLZ-80DCBVM-2414

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

24 volt DC industrial brushless vibrating electric motor with a digital speed display controller, 80W power, 3A current, 1.6 kN force, 5000rpm rated speed, ideal for mining, chemicals, medical equipment, and food machinery.

Features

  • 80W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
  • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
  • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
  • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
  • Special voltage and speed can be customized, please contact us.

Specifications

ModelRDDLZ-80DCBVM-2414
Voltage24V
Rated Speed5000rpm
Current3A
Power80W
Force1.6 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection RankIP65 (Dustproof and Waterproof)
Insulation GradeF (The Highest Heat Resistant Temperature is 155℃)
Cooling ModeNatural Cooling (IC410)
Working SystemS1 (Continuous Duty)
Weight2.6 kg
Dimensions176mm x 110mm x 99mm
Frame No14
CertificateCE

Notes

  1. +/- 20% voltage tolerance.
  2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

Dimension (Unit: mm)

Frame NoABCDEFGHIJKLMNO
141761109912682591.5858263.526.5158.58.516.5


Applications

RDDLZ 80W 24V 5000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: DC Brushless Vibration Motor Working Principle

The brushless DC vibration motor comprises the motor body and the driver. The motor's stator windings are mostly made of a three-phase symmetric star connection, which is very similar to the three-phase asynchronous motor. To detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, whose function is to receive the start, stop and brake signals of the motor to control the start, stop and brake of the motor. It receives the position sensor signal and the positive and negative rotation signal, which is used to control the on-off of each power tube of the inverter bridge and generate continuous torque. Receive speed instructions and speed feedback signals to control and adjust the speed. Provide protection and display, etc.
