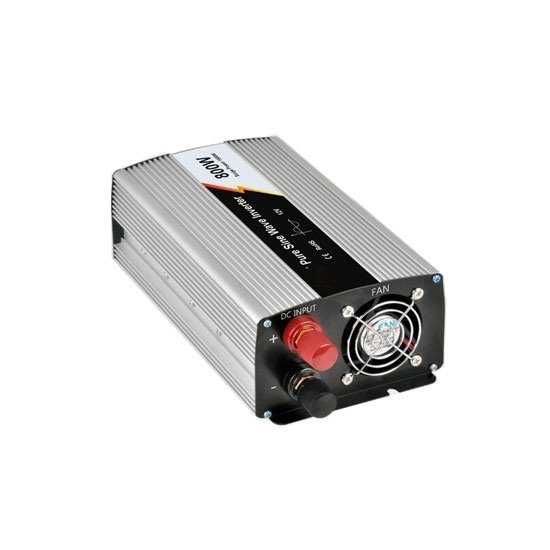

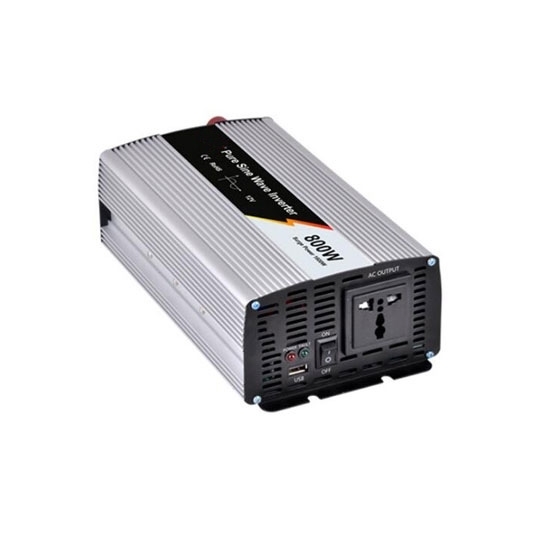

800 Watt/1600 Watt pure sine wave power inverter has optional input voltages of DC 12V/24V/48V and output voltages of AC 110V/120V/220V/230V/240V with safe charging design, best DC to AC inverter for powering cell phone, laptop, fan, MP3 player, and other devices requiring less than 800W power.

Specification

Features

• Provides 800W continuous power and 1600W surge power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy shell with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

Protection Functions & Applications

• Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: How to judge whether the power inverter is appropriate?

First of all, it need to consider efficiency of conversion. Because the inverter itself has a certain power consumption characteristics, part of the current will be always lost when DC is inverted to AC. Therefore, the high or low efficiency of conversion in this process has also become one of the standards that power inverter is good or bad.

Secondly, take into account the quality of inverter's output AC power. Good power inverters output high quality AC power after invertering. And good stability is not only beneficial to the service efficiency of the inverter, but also beneficial to the safety of users' lives and property. What’s more, the service life of power inverter is relatively longer. However, for the poor quality of the inverter, the output power is unstable, which may cause safety hazards and shorten its service life.

In addition, when purchasing a power inverter, it also needs to consider the DC component contained in the output AC, which is called ripple voltage. It will be completely filtered in the filter circuit of the good inverter.
