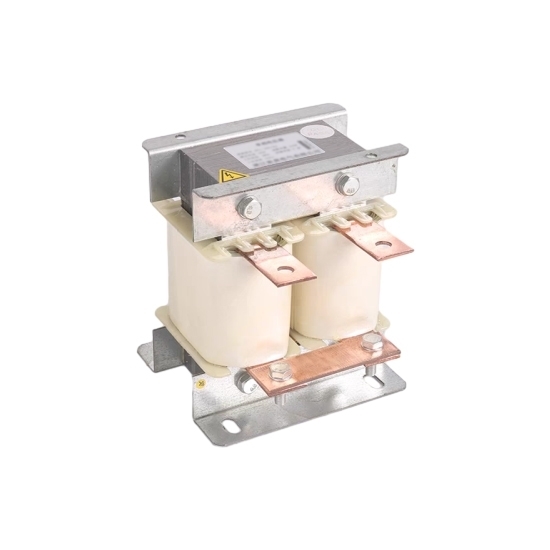

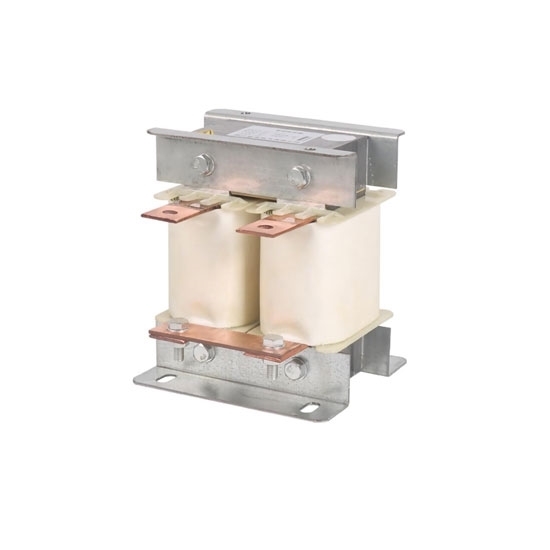

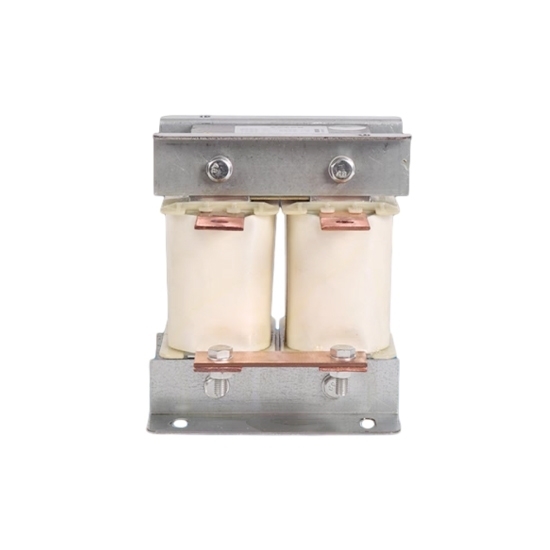

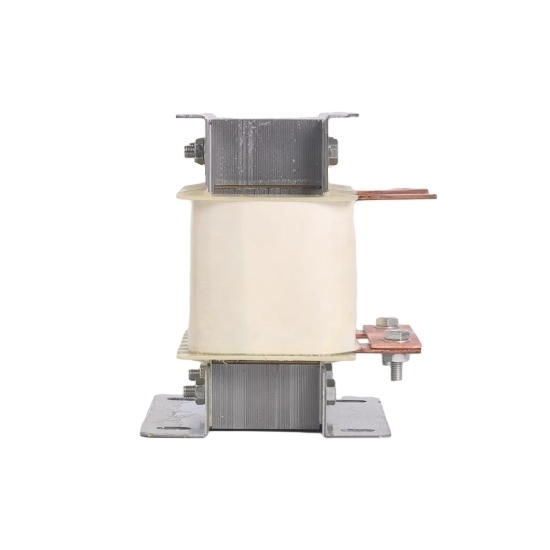

75 Hp (55kW) DC Reactor, Single Phase

0 reviews • Write a review

from

$421.87

Ex Tax: $421.87

Stock: In Stock
Model: RDDLZ-DCR-75
Weight: 1.00
SKU: RDDLZ-DCR-75

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy professional dc line reactor for vfd, affordable price, power 55 kW (75hp), output voltage 220V, 380V or 440V for selection.

Specification:

Model	RDDLZ-DCL-150
Phase	1 Phase
Power Adapter	55 kW (75 hp)
Recommended VFD Model	SKU: GK3000-4T0550G (75 hp three phase VFD)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	150A
Inductance	0.21mH
Insulation Grade	F.H
Dimension	165165185mm (LWH)
Mounting Dimension	120*90mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	17kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Single Phase DC Line Reactor Dimension (unit: mm)

Details

Tips: When does VFD need to add output reactor?

1.When the length of the connecting wire between the frequency converter and the motor is ≥100 meters.

2. After using the inverter, when the motor has problems such as howling, overheating, vibration, rapid insulation aging, and frequent insulation damage.

3. After using the frequency converter, when the bearing of the motor has pitting, cracking and other problems.

4. After the inverter is powered on, the electrical equipment around the motor cannot work normally.
