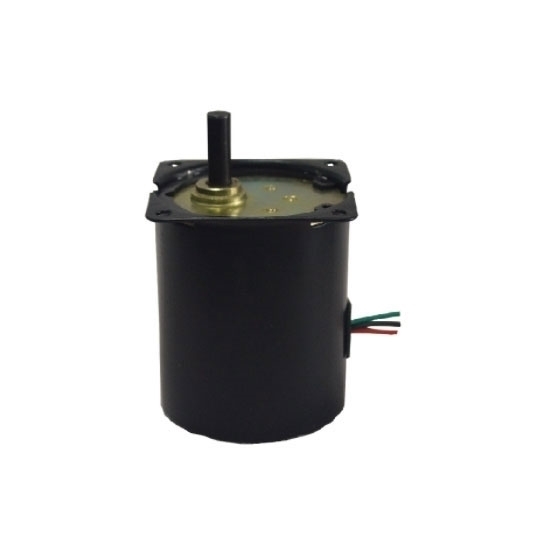

60 Rpm AC Synchronous Gear Motor, 24V/110V/220V

60 Rpm AC Synchronous Gear Motor, 24V/110V/220V
60 Rpm AC Synchronous Gear Motor, 24V/110V/220V
0 reviews • Write a review
from
$76.83
Ex Tax: $76.83
  • Stock: In Stock
  • Model: RDDLZ-60TYD-B60
  • Weight: 1.00
  • SKU: RDDLZ-60TYD-B60

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.

Specification

ModelRDDLZ-60TYD-B60
Duty TypeS1 ContinuesS2 (30 mins)
Voltage (AC)24V110V220V-240V24V110V220V-240V
Power Frequency50/60 Hz50/60 Hz
Output Speed60 rpm
Output Torque7 Kgf·cm7 Kgf·cm
Rated Speed1200 rpm1200 rpm
Input Power< 17W< 25W
Input Current< 0.65A< 0.15A< 0.08A< 1.5A< 0.35A< 0.2A
RotationCW/CCW (Reversible)CW/CCW (Reversible)
Operating Temperature-15 ~ 40℃-15 ~ 40℃
Coil Temperature Rise< 80K< 80K
Insulation ClassBB
Insulation StrengthAC 1500/ 50Hz/minAC 1500/ 50Hz/min
Recommended Capacitance47μF/ 63V2.2μF/ 250V0.56μF/ 450V67μF/ 63V3.0μF/ 250V0.8μF/ 450V

Dimension (Unit: mm)

Detail

Tips: AC synchronous motor basics

  • The speed of a synchronous motor is dependent only on the stator frequency.
  • Below the base speed, the stator voltage is proportional to the stator frequency, that is, the higher the motor speed is, the higher the stator voltage and frequency of the motor are, and the current increases with the increase of the speed.
  • Above the base speed, the stator voltage only rises to the rated voltage, the stator frequency rises and the rotor current decreases.
  • The stator current is proportional to the load, and the rotor current increases with the increase of the load, but not in a proportional relationship, that is, when the stator current increases, the rotor current also increases.
  • When the AC synchronous motor is directly connected to the grid, it must be dragged to the synchronous speed by other power before the stator can be connected to the grid. The reason is that when the motor does not rotate, there is no counter electromotive force. If the stator is connected to the grid at this time, it is equivalent to the stator short circuit, which will burn the motor.
