60 kVA Voltage Stabilizer Features

Input: Three phase and four-line system, 175V-265V (phase voltage), 304V-456V (line voltage)
Output: Three phase 380V, other voltages can be customized
High technology with computer programming control
Comes with a sleek, compact, and elegant design
Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection
High efficiency: More than 95%

60 kVA 3-phase Industrial AC Automatic Voltage Stabilizer is an adjustable automatic voltage compensation high-power regulating power device. When the voltage from the supply network is varied or due to the loading current effect, it automatically regulates the output voltage to ensure the normal function of the varied electric equipment.

60 kVA Voltage Stabilizer Specifications

Model Number	RDDLZ-SBW/ZBW-60K
Capacity	60 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	3 Phase 4-line
Input Voltage Range	±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage	3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy	±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency	50Hz/60Hz
Current Type	AC
Efficiency	≥95%
Response Time	≤1.5S
Ambient Temperature	-15°C~+40°C
Cooling Method	Air-cooled
Insulation Resistance	≥5MΩ
Electrical Intensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity	Overload current (%)	Duration (min)
	20	≤60
	40	≤15
	60	≤5
Waveform Distortion	Non-lack fidelity waveform
Protection	Over-voltage, over-current, feed phases
Protection Grade	IP 24
Warranty	12 months
Certificate	ISO9001:2008, CE
Weight	370 Kg
Package Size	800x620x1350 mm

3 Phase Voltage Stabilizer Schematic Diagram

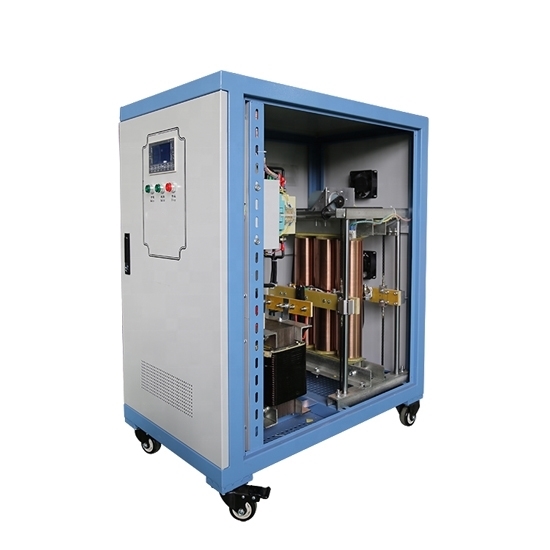

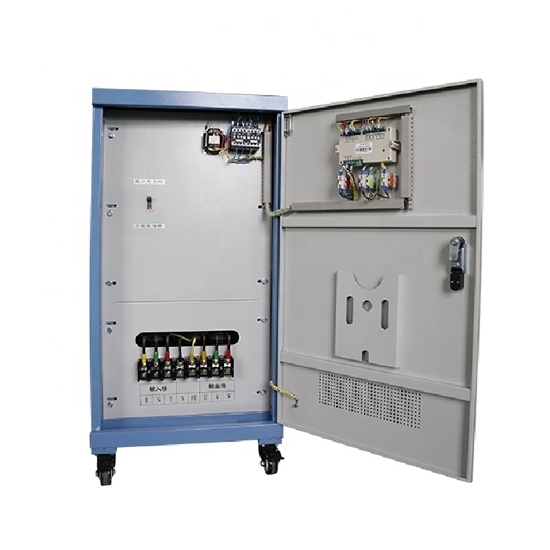

Industrial Voltage Stabilizer Inner Detail

Tips for Installing Voltage Stabilizer

Check the housing, ammeter, switch, indicator lamp, button, and wiring terminals of the voltage stabilizer.
Connect the voltage stabilizer input terminal to the switchboard and install a suitable fuse on the switchboard, so as to ensure electrical safety.
Connect the power supply of power consumption equipment to the output terminal of this instrument, notice that the rated input voltage of electrical appliances should be consistent with that of the voltage stabilizer, don't connect wrongly.
Turn on the power switch of the voltage stabilizer first and the indicator light works, observe if the indicated value of the voltmeter is normal. If the output voltage is normal, turn on the power switch of the power consumption equipment, and the voltage stabilizer can adjust the voltage automatically.
If the power consumption equipment would be free for the long term, please turn off its power switch to reduce power consumption and extend the service life of the voltage stabilizer.
The voltage stabilizer should not be overloaded. When the market voltage is low and the output capacity reduces, please reduce the load of the voltage stabilizer.
