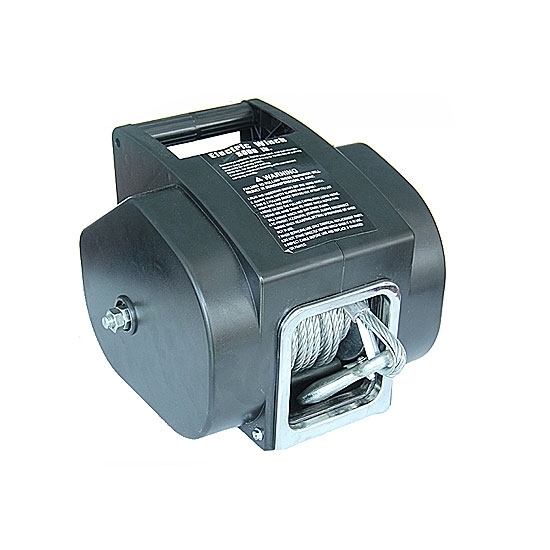

Low price electric trailer winch is built with the purpose task of winching boats and vehicles onto trailers quickly and easily. This lightweight electric winches also can be used for off-road vehicles, UTVs, ATVs, yachts, boats and other special vehicles.

Feature

Electric trailer winch is portable power trailer winch for pulling boats, stuck vehicles and other heavy items.
With powerful 5000 lbs pulling capacity.
12V DC powered for convenient use without extension cords or small gas engines.
Built-in carrying handle and quick-attach mounting plate.

Specification

Model	RDDLZ-B5000LB
Single Line Rated Pull	5000 lbs (2268kgs)
Voltage	12V DC
Motor	0.6hp (450W)
Gearing	Gear Gearshift
Drum Speed	1.2m/min
Drum Size (Dia x L)	Ø33mm x 90mm
Wire Rope	Ø7.2mm x 10m
Remote Switch Cable Length	3m (10 ft.)
Electric Cable Length	3m (10 ft.)
Pulley Block	Optional
Overall Dimensions (L x W x H)	266.5 x 256.5 x 216.5mm
Packing Size	640 x 440 x 375mm
Protection Grade	IP67
Gross Weight	35kg
Net Weight	33kg

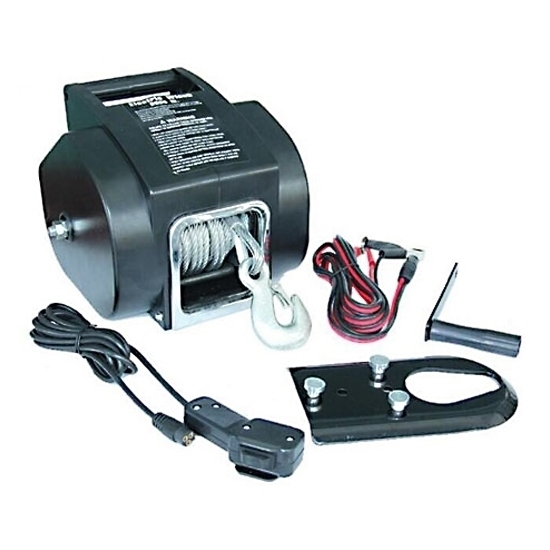

Package Included

1	1 x 5000 lbs Electric Boat Winch
2	1 x Clevis hook
3	1 x Wired remote controller
4	1 x Universal mounting plate
5	1 x Winch cable
6	1 x Set of bolts
7	1 x User manual

Dimensions (Unit: mm)

Tips: What is an electric boat trailer winch?

The electric boat trailer winch is marine equipment installed on the main deck of the fore and aft of the ship for anchoring and mooring of the ship. When the electric winch is working, the motor drives the reducer to rotate, and drives the winch drum or anchor sprocket to work to achieve anchoring or take-up. The anchor sprocket and the winch drum are converted with clutch hand wheels.
