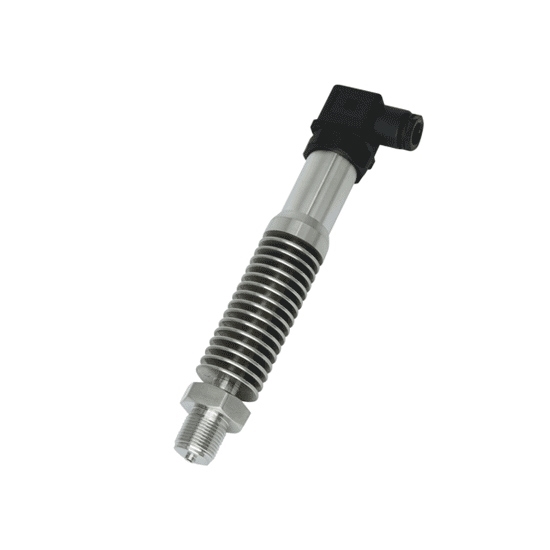

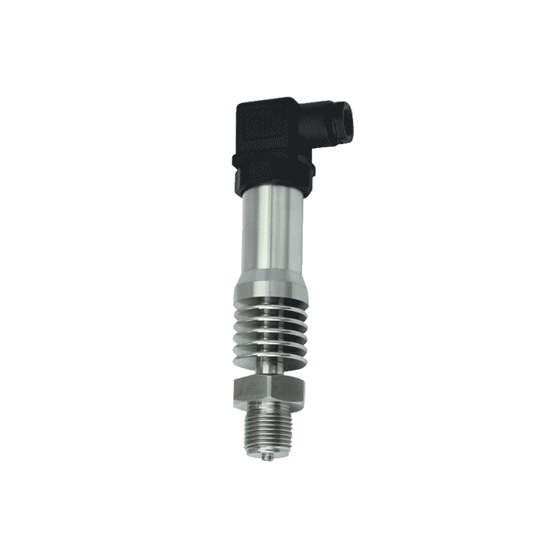

Stainless Steel High Temperature Pressure Transmitter, -20℃~350℃

0 reviews • Write a review

from

$212.37

Ex Tax: $212.37

Stock: In Stock
Model: RDDLZ-PRES-PT25
Weight: 1.00
SKU: RDDLZ-PRES-PT25

Available Options

Short Description

Power Supply

Output Signal

Pressure Type

Measuring Range

Thread of Pressure Connection

Electrical Connection

Quantity of Cooling Fins

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Wholesale price pressure transmitter uses high-quality high temperature resistant pressure sensors as the signal of the measuring sensitive element. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the transmitter. The sensor probe can work stably for a long time at a high temperature of 350℃. With a 0-60Mpa measurement range and an output signal of 4-20mA, 0-5V, 1-5V, 0-10V, RS485, DC 12V/24V power supply and 5-15 cooling fins, this stainless steel pressure sensor is widely used in the measurement and control of liquid and steam pressure in the high temperature field.

Specifications

Model	RDDLZ-PT25
Pressure Range (Optional)	0-60MPa
Accuracy	0.25%FS, 0.5%FS
Output Signal(Optional)	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Power Supply (Optional)	DC 12V, DC 24V
Process Connector (Optional)	G1/4, G1/2, 1/4NPT, 1/2NPT, M20*1.5
Electrical Connector (Optional)	DIN Connector Type, M12 Circular Connector Type, Direct Lead Wire Type
Loading Capacity	Current Type: R=(U-8V)/0.02
Temperature Compensation	0-100℃
Working Temperature	-20-150℃, -20-350℃
Safety Overload	150%
Extreme Overload	200%
Temperature Drift	0.02%FS/℃
Long Term Stability	0.2%FS/year
Hold Liquid Material	304 SS (Default), 316L SS (Contact Us)

Dimension (Unit: mm)

Pressure Transmitter Electrical Wiring Diagram

Tips: Why choose a stainless steel high temperature pressure sensor?

High Temperature Resistance: Stainless steel pressure sensors are designed to function reliably in environments with elevated temperatures, sometimes reaching up to 500°C or more, without degrading performance.
Corrosion Resistance: Stainless steel has excellent resistance to corrosion, making it suitable for harsh environments where moisture, chemicals, or saltwater (in marine settings) could corrode other materials.
Durability and Longevity: Stainless steel is highly durable and resistant to mechanical wear, contributing to a longer lifespan in challenging conditions.
Mechanical Strength: The material can withstand high pressures and physical stress, which is crucial in applications like hydraulics, gas pipelines, or combustion engines.
Wide Range of Applications: Stainless steel high-temperature pressure sensors can be used in oil and gas, chemical processing, automotive, aerospace, and power generation industries where high pressure and high temperatures are involved.
Minimal Maintenance: Due to its robustness and resistance to harsh conditions, stainless steel sensors typically require less maintenance than other materials' sensors.
