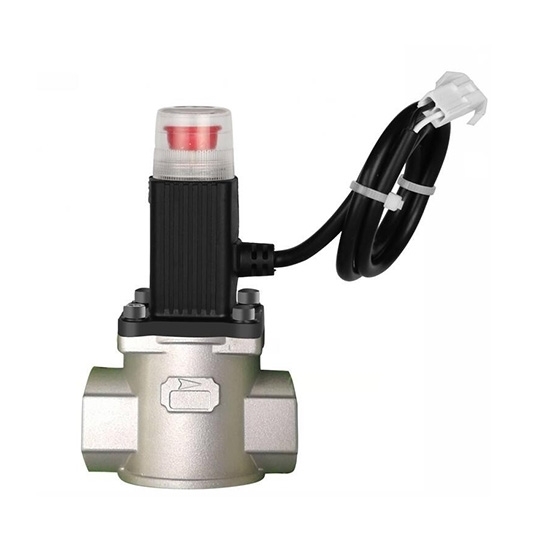

1-1/4" Gas Solenoid Valve, LPG/Natural Gas

0 reviews • Write a review

from

$140.92

Ex Tax: $140.92

Stock: In Stock
Model: RDDLZ-GSV-DN32
Weight: 1.00
SKU: RDDLZ-GSV-DN32

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Gas solenoid shut off valve uses NBR rubber sealing material to ensure good air tightness. The emergency gas shut off valve opening time is less than 1 second and is suitable for an operating temperature range of -10℃ to 50℃. The manual opening function facilitates quick response, and the valve closing can be driven by DC pulses or manually operated, with a closing time of less than 0.3 seconds.

Specification

Model: RDDLZ-SR-510-DN32
Suitable gas types: natural gas, LPG, man-made coal gas and other
Closing modes: current impulse or manual
Body: aluminum
Driving voltage: DC 9-15V
Sealing material: NBR rubber
Close time: <1s
Operation temperature: -10~50℃
Explosion proof mark: ExmbⅡT4
Pressure max: 100kPa
Lead wire: 0.4m
Connection: G1-1/4"
Turn on: manual
Valve opening: reset manually
Valve closing: direct current pulse drive or manually
Closing time: <0.3s

Wiring diagram

K1: manual switch
K2: external impulse switch
K3: power failure switch

Detail

Tips: Installation requirements of gas shut off solenoid valve

The valve must be installed after the indoor main valve.
A gas shut off solenoid valve should be installed in the gas flow direction marked on the valve body. The coil must not be placed in downward position A valve may be installed horizontally or vertically.
The gas solenoid valve control wires should be connected correctly. White indicates positive while black stands for negative. Mismatch lends to fatal consequences.
During pipe maintenance, such as pressurized pipe cleaning. The valve should remove to avoid damages to the valve sealing.
During pressure tests, the gas shut off solenoid valve should be turned on.
The valve's opening knob can be pulled up when equal pressure has been reached at the inlet and the outlet of the valve.
Wrong polarity, wrong voltage or prolonged power on may damage the electromagnetic coil.
Our guarantee does not include any damage to the gas solenoid valve or loss of parts due to violation compass operation.
