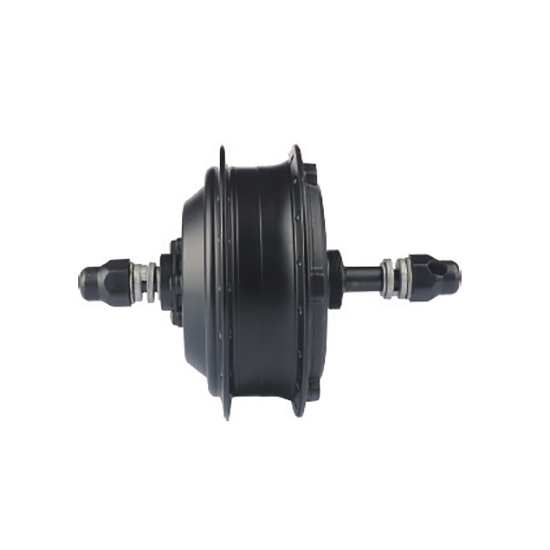

500W Gear Hub Motor, 24V/ 36V/ 48V/ 60V, 40 N.m

500W Gear Hub Motor, 24V/ 36V/ 48V/ 60V, 40 N.m
500W Gear Hub Motor, 24V/ 36V/ 48V/ 60V, 40 N.m
0 reviews • Write a review
from
$263.08
Ex Tax: $263.08
  • Stock: In Stock
  • Model: RDDLZ-HM500
  • Weight: 1.00
  • SKU: RDDLZ-HM500

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 500W 24V/ 48V ebike gear in-wheel motor is for 16”-28” diameter rear wheel. 138mm dropout, V/ disc brake, 82% working efficiency, brushless. Light weight and high efficiency.

Specification

ModelRDDLZ-105C
Motor typeBrushless DC motor
Max. power500W
Rated voltage24V/ 36V/ 48V/ 60V DC (optional)
Max torque40 N.m
Reduction ratio1:5.8
Installation positionRear
Motor structureGear
Wheel diameter26 inch is standard configuration (16-28 inch can be customized)
Rated speed25 km/ h
Spoke specification36H*12g/ 13g
Dropout138mm
Brake typeV/ Disc brake
Operation temperature-20℃ - 45℃
Efficiency≥82%
ColorBlack
Cabling routeShaft center right
Noise grade≤55 dB
IP gradeIP65
Salt spray test standard24/ 96 h
Drive and freewheel6-7s
Weight3kg

Dimension (Unit: mm)



Details

Tips: How does a 500W hub motor work?

Hub motor technology is also known as electric wheel motor technology. Its biggest feature is that the power unit, transmission and braking device are integrated into the wheel hub, which greatly simplifies the mechanical part of the electric vehicle. The wheel hub motor drive system is mainly divided into two structural forms: Inner rotor type and outer rotor type. Among them, the outer rotor type adopts a low-speed outer rotor motor, the maximum speed of the motor is 1000-1500r/min, and there is no deceleration device, and the speed of the wheels is the same as that of the motor. The inner rotor type uses a high-speed inner rotor motor, equipped with a reducer with a fixed transmission ratio. In order to obtain a higher power density, the motor speed can be as high as 10000r/min. With the advent of more compact planetary gear reducers, the inner-rotor hub motor is more competitive than the low-speed outer-rotor type in terms of power density.
