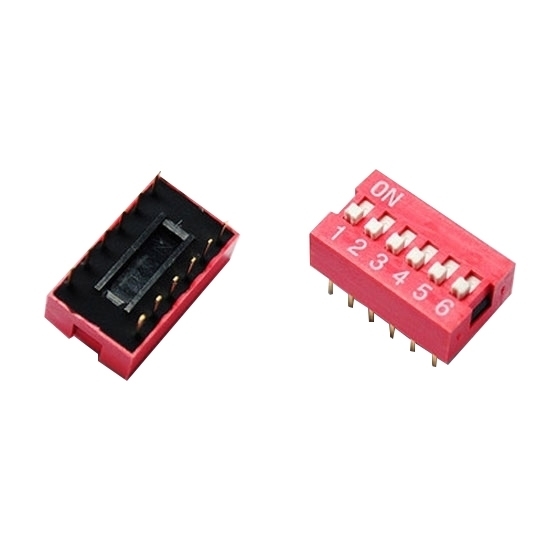

6 Position DIP Switch, 12 Pin, SPST

0 reviews • Write a review

from

$9.39

Ex Tax: $9.39

Stock: In Stock
Model: RDDLZ-DIP-6P
Weight: 1.00
SKU: RDDLZ-DIP-6P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual inline package switch (DIP switch) is designed to hold configurations and select the interrupt request for motherboards or breadboard. This small DIP switch with 6 push buttons also can be used to activate or deactivate different electronic circuits.

Specification

Model		RDDLZ-DIP-6P
Spacing		2.54mm
Number of Switch		6
Number of Pin		12
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips: Different types of DIP switches

Half-spacing type
The pin spacing is half of the normal DIP switch, that is 1.27mm. The main features are small size and occupy less space on the circuit board. It is suitable for use on micro-precision equipment.
DIP flat type
The pin spacing is 2.54mm. It adopts the direct insertion type (DIP) and the flat type, belonging to two states. The strength of the actuator is up to 800gF in each series, and the working temperature is -40 to 85 degrees, which is suitable for industrial grade.
DIP sliding type
The pin spacing is 2.54mm, and the sliding in-line switch is two states. The temperature range is -40 to 85 degrees, suitable for industrial grade.
DIP key type
Pin spacing is 2.54mm, top dial in-line (DIP), two states. The protruding part of the actuator is only 0.9mm. Gold-plated contacts, strong reliability. The stroke of the actuator is only 0.9mm, and the temperature range is also suitable for industrial grade.
DIP ultra-thin sliding type
Pin spacing is 2.54mm, top dial in-line (DIP), two-state, sliding type. Gold-plated contacts, strong reliability. Suitable for precision instruments.
DIP key convex type
Pin spacing is 2.54mm, top dial type (DIP), two-state, key type. The contact part is a gold-plated contact, and the self-cleaning structure of the operation ensures high reliability. Suitable for operating equipment up and down.
