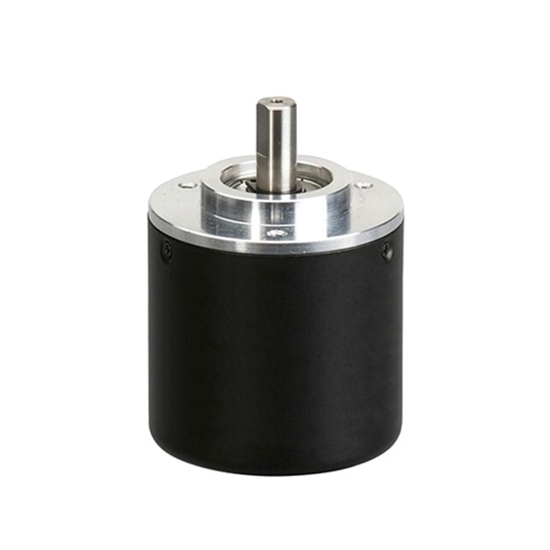

Incremental optical rotary encoders with 2000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Model Selection

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

1. The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
4. Compact and lightweight, suitable for automation equipment with limited installation space.
5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: The factors that affect the encoder reproducibility

1. Noise: The connection between encoder and PLC or electronic driver does not conform to the standard EMC guidelines (for example, a more practical method is to provide proper shielding for both ends of encoder connection). This connection is susceptible to noise or causes problems associated with electromagnetic interference.
2. Installation: The encoder is not installed on the motor for proper mechanical installation (eg poor connection will result in frequency hopping of the encoder).
   Therefore, extreme care must be taken when installing a machine encoder or an encoder with an induction motor system to ensure that the encoder is mounted on the machine by suitable mechanical means and that the connection of the electric drive or PLC complies with the EMC requirements.
