6μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$3.59

Ex Tax: $3.59

Stock: In Stock
Model: RDDLZ-FC-CBB61-060
Weight: 1.00
SKU: RDDLZ-FC-CBB61-060

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

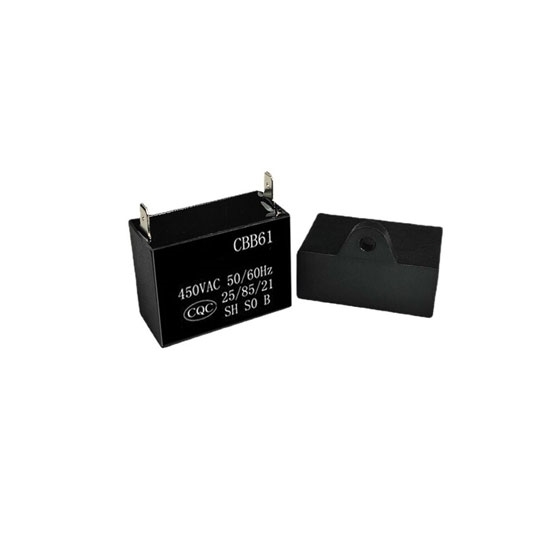

The 450V ceiling fan capacitor is made of metallized polypropylene film sheet with a temperature-resistant, corrosion-resistant plastic housing, rated capacity of 6 mfd, ideal for starting and working single-phase motors in 50Hz/60Hz AC power systems.

Specification

Model: RDDLZ-FC-CBB61-060
Capacity: 6μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 20.5(L) x 35(H)mm
Certificate: CE, CQC

6μF Ceiling Fan Capacitor Wiring Diagram

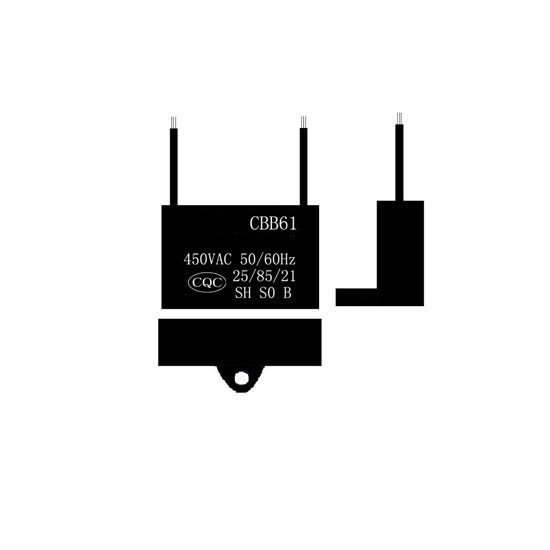

Ceiling fan capacitor details

Tips: Role of metallized film capacitors

Metallized film capacitors have a so-called self-recovery effect, i.e., if a small part of the electrode is short-circuited due to the fragility of the electrical boundary, the electrode metal around the short-circuited part will be restored to insulation by melting and evaporating a larger area due to the electrostatic energy or short-circuit current carried by the capacitor at that time, so that the capacitor can resume its role as a capacitor again.
