6.5A 130W USB Type C Tester

0 reviews • Write a review

from

$100.11

Ex Tax: $100.11

Stock: In Stock
Model: RDDLZ-USBT-C1
Weight: 1.00
SKU: RDDLZ-USBT-C1

Available Options

Short Description

Bluetooth

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

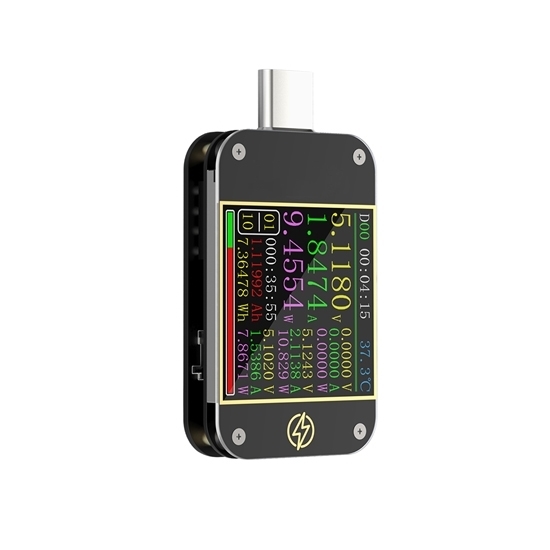

Digital Type-C tester features voltage monitoring 4 to 24V, current monitoring 0 to 6.5A, and power monitoring 0 to 130W. This USB Type-C power tester is available with an external 16-bit ADC and PD protocol physical chip, suitable for chargers, mobile power supplies, data cables, and digital devices like mobile phones and laptops.

Specifications

Model: RDDLZ-C1
Monitoring Voltage: 4~24V
Monitor Voltage Resolution: 0.00001V
Monitoring Voltage Accuracy: ± (0.2‰+2)
Monitoring Current: 0~6.5A
Display Current Resolution: 0.00001A
Monitoring Current Accuracy: ±(0.5‰+2)
Display Power: 0~130W
Display Current Resolution: 0.00001W
Monitoring Current Accuracy: ± (0.5‰+2)
Load Equivalent Resistance: 0~9999.9Ω
Load Equivalent Resistance Resolution: 0.0001Ω
Load Equivalent Resistance Accuracy: ± (0.5‰+2)
Capacity: 0~9999.99Ah
Use Energy: 0~9999.99Wh
Cable Resistance: 0~9999.9Ω
D+/D- Voltage: 0~3.3V
D+/D- Voltage Resolution: 0.001V
D+/D- Voltage Accuracy: ±(1.0%+2)
Equipment Temperature: ℃/℉
Size: 50*25*8mm
Weight: 47g

Dimension

Details

Type C Tester Compatibility Issues

There may be incompatibility problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.
There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need an APP, please install and test the APP before buying the product.
If you don't test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund.
Please install and test the APP if you use a Samsung mobile phone.

Applications

Tips: Can a USB tester be a current meter?

Yes, a USB tester can function as a current meter. USB testers are versatile devices designed to measure various electrical parameters in a USB connection, including voltage, current, and power. Users can connect a USB tester between a USB power source and a device to monitor the current flow in real time. The device typically displays this information on its built-in screen, allowing users to assess the charging or power consumption of the connected device. Therefore, a USB tester serves as a valuable tool for those who need to measure and understand the current being drawn or supplied through a USB connection.
