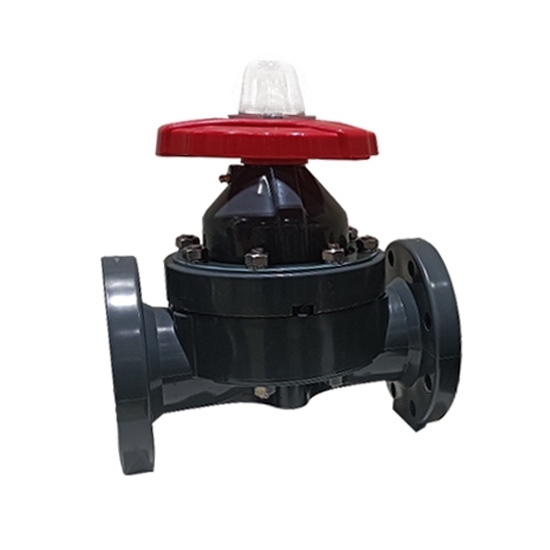

4" Flanged Diaphragm Valve, UPVC/ CPVC

0 reviews • Write a review

from

$538.89

Ex Tax: $538.89

Stock: In Stock
Model: RDDLZ-FDV-DN100
Weight: 1.00
SKU: RDDLZ-FDV-DN100

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

PVC diaphragm valve consists of a UPVC or CPVC body with an inlet and outlet and a diaphragm that separates these two ports. When the valve is in the closed position, the diaphragm seals against the body, preventing the flow of fluid.

Specification

Model	RDDLZ-FDV-DN100
Size	4 inch (DN100)
Structure Type	Flanged Type
Diaphragm Valve Assembly	Parts	Material
	Diaphragm	PTFE
	Film	EPDM
	Valve Body	UPVC, CPVC
	Valve Plate	UPVC, CPVC, Steel, Stainless Steel
	Cover Limit	AS
	Stud	Steel, Stainless Steel
	Retaining Nut	FRPP
	Washer	FRPP
	Wheel	Alloy Material
	Platen	Steel, Stainless Steel
	Double-Headed Stud and Nut	Steel, Stainless Steel
	Bonnet	UPVC, CPVC
	Yoke Nut	Ht300 Steel
	Stem	Steel, Stainless Steel

Dimension (Unit: mm)

Size	Valve Body Material	d	D	L	h	n-φ
4 inch (DN100)	UPVC	180	215	350	29	8-φ18
4 inch (DN100)	CPVC	180	215	350	29	8-φ18

Note: The above dimensions are for reference only, please refer to the actual product.

Detail

Working Pressure

Size	Working Pressure (MPa)
	UPVC			CPVC
	20~40℃	41~60℃	61~80℃	0~40℃	41~60℃	61~90℃
1/2" (DN15)	0.8	0.8	0.7	0.7	0.7	0.6
3/4" (DN20)	0.8	0.8	0.7	0.7	0.7	0.6
1" (DN25)	0.8	0.8	0.7	0.7	0.7	0.6
1-1/4" (DN32)	0.7	0.7	0.6	0.7	0.7	0.6
1-1/2" (DN40)	0.7	0.7	0.6	0.7	0.7	0.5
2" (DN50)	0.7	0.7	0.6	0.7	0.7	0.5
2-1/2" (DN65)	0.7	0.7	0.6	0.7	0.7	0.5
3" (DN80)	0.7	0.7	0.6	0.7	0.7	0.5
4" (DN100)	0.7	0.7	0.6	0.7	0.6	0.5
5" (DN125)	0.5	0.5	0.4	0.5	0.5	0.4
6" (DN150)	0.5	0.5	0.4	0.5	0.4	0.3
8" (DN200)	0.3	0.3	0.2	0.5	0.3	0.25
10" (DN250)	0.3	0.3	0.2	0.3	0.3	0.2

Tips: Is a diaphragm valve a ball valve?

A diaphragm valve and a ball valve are two distinct types of industrial valves used to control the flow of fluids within pipelines, and they have fundamental differences in their design and operation.

A diaphragm valve uses a flexible diaphragm, typically made of rubber or a similar material, to isolate the flow path. When the valve is closed, the diaphragm is pressed against the valve seat to block the flow completely. This design makes diaphragm valves excellent for applications requiring a high level of sealing and where contamination must be prevented, such as in the pharmaceutical and food industries.

In contrast, a ball valve employs a spherical ball with a hole in it to regulate the flow. When the valve is open, the ball's bore aligns with the pipeline, allowing fluid to pass through, and when it's closed, the ball rotates to block the flow. Ball valves are known for their quick, reliable shut-off capability and are commonly used in various industries, including oil and gas, plumbing, and industrial processes.
