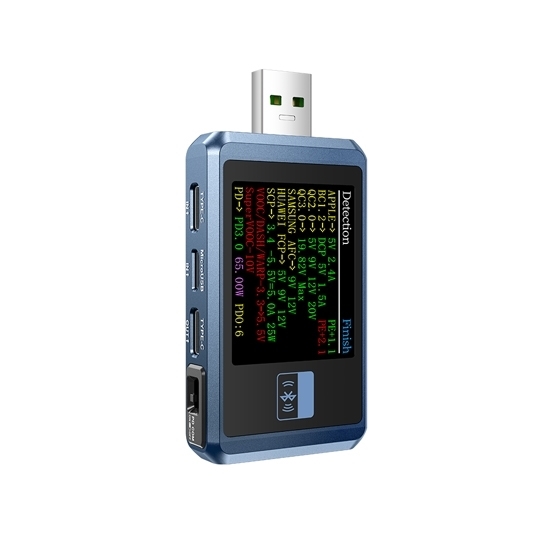

Multifuctional USB tester is designed for precise monitoring of power, current, and voltage, and provides 6.5A high current capacity, 156W power, and 24V voltage. Hot selling USB port tester with a 6-digit display supports a variety of fast charging protocols and is compatible with USB, Type-C, and Micro interfaces.

Specifications

• Model: RDDLZ-FNB48P
• Monitoring Voltage: 4~24V
• Monitoring Voltage Resolution: 0.00001V
• Monitoring Voltage Accuracy: ± (0.2%+2)
• Monitoring Current: 0~6.5A
• Display Current Resolution: 0.00001A
• Monitoring Current Accuracy: ±(0.5%+2)
• Display Power: 0~156W
• Display Current Resolution: 0.00001W
• Monitoring Current Accuracy: ± (0.5%+2)
• Load Equivalent Resistance: 0~9999.9Ω
• Load Equivalent Resistance Resolution: 0.0001Ω
• Load Equivalent Resistance Accuracy: ± (0.5%+2)
• Capacity: 0~9999.99Ah
• Use Energy: 0~9999.99Wh
• Cable Resistance: 0~9999.9Ω
• D+/D- Voltage: 0~3.3V
• D+/D- Voltage Resolution: 0.001V
• D+/D- Voltage Accuracy: ± (1.0%+2)
• Equipment Temperature: ℃/℉

Feature

• Digital156W USB tester has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, and Type-C interface.
• This 6.5A USB power meter uses an external 16-bit ADC and PD protocol physical chip, it can be used to test the fast charging protocol of chargers.
• It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks and can be used to measure the charging power of mobile phones and the input and output of mobile power supplies.
• Multifunction USB tester can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage, etc.

Dimension

Details

Applications

Tips: Is a USB tester a multi-functional tester?

Yes, a USB tester is a type of multi-functional tester. While its primary function is to measure and display various electrical parameters in a USB connection, such as voltage, current, and power, many USB testers come with additional features. These may include capabilities like measuring the capacity of a battery, monitoring temperature, and providing data logging.

The term "multi-functional tester" is broad and can encompass devices that serve different testing and measurement purposes. In the context of a USB tester, its multifunctionality lies in its ability to provide a range of information related to USB power delivery and charging performance. Depending on the specific model and brand, the features of a USB tester may vary, but they are generally designed to offer comprehensive insights into the electrical characteristics of USB-connected devices.
