7A 120W USB Tester For Voltage/Power/Current

0 reviews • Write a review

from

$101.09

Ex Tax: $101.09

Stock: In Stock
Model: RDDLZ-USBT-58
Weight: 1.00
SKU: RDDLZ-USBT-58

Available Options

Short Description

Bluetooth

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

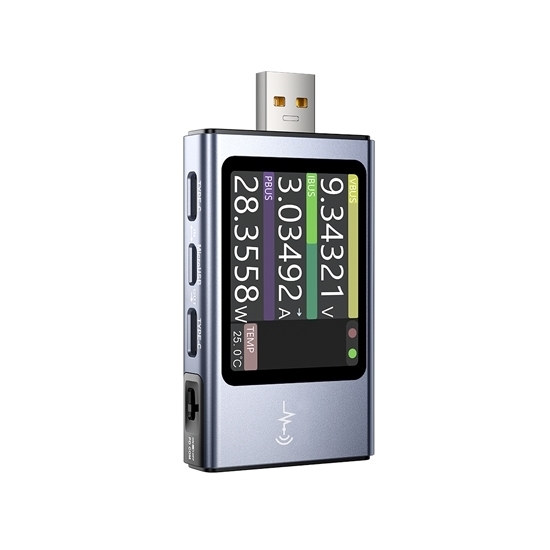

Digital USB port tester is used for detecting USB voltage, power and current. Multifunctional 120W USB power meter comes with a 2.0-inch LCD high-definition display, 7A current, 4~28V voltage, Type-C input & output interface, and supports various fast charging protocols.

Specifications

Model: RDDLZ-FNB58
Material: ABS
Monitor Voltage: 4~28V
Monitor Voltage Resolution: 0.00001V
Monitor Voltage Accuracy: ± (0.2‰+2)
Monitor Current: 0~7A
Monitor Current Resolution: 0.00001A
Monitor Current Accuracy: ± (0.5‰+2)
Monitor Power: 0~120W
Monitor Current Resolution: 0.00001W
Monitor Current Accuracy: ± (0.5‰+2)
Load Equivalent International Resistance: 0~9999.9Ω
Load Equivalent International Resistance Resolution: 0.0001Ω
Load Equivalent International Resistance Accuracy: ± (0.5‰+2)
Capacity: 0~9999.99Ah
Energy Used: 0~9999.99Wh
Cable Resistance: 0~9999.99Ω
D+/D- Voltage: 0~3.3V
D+/D- Voltage Resolution: 0.001V
D+/D- Voltage Accuracy: ± (1.0%+2)
Equipment Temperature: ℃/℉

Features

Digital USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, and Type-C interface.
Small USB power meter uses an external 16-bit ADC, PD protocol physical chip, which can be used to test the fast charging protocol of chargers.
High quality 7A 120W USB meter can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks, and can be used to measure the charging power of mobile phones and the input and output of mobile power supplies.

Dimension

Details

Applications

Tips: Why choose a USB tester?

Choosing a USB tester is essential for several reasons. Firstly, it provides real-time monitoring of voltage, current, and power in USB connections, enabling users to diagnose and troubleshoot issues related to charging or power delivery. This data helps in optimizing device performance and ensuring compatibility. USB testers are particularly valuable when dealing with various USB-powered devices, allowing users to make informed decisions about power management. Additionally, these testers help users identify faulty cables or chargers, preventing potential damage to devices. With compact designs and user-friendly interfaces, USB testers offer a convenient solution for assessing the health and efficiency of USB-connected gadgets, making them indispensable tools for tech enthusiasts and professionals alike.
