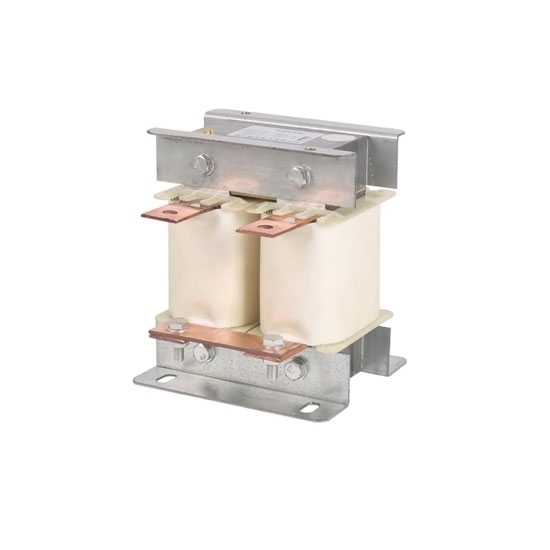

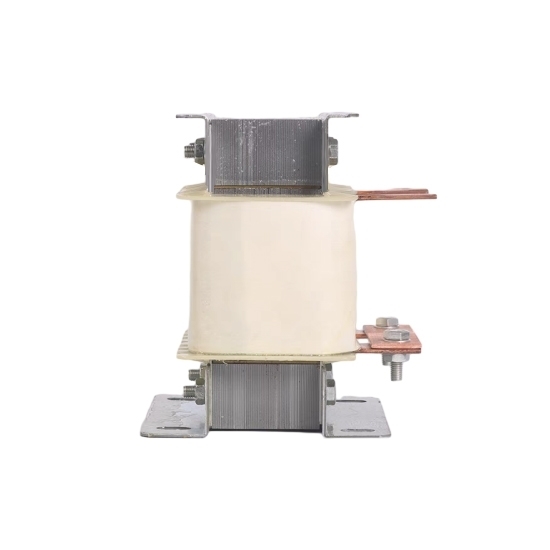

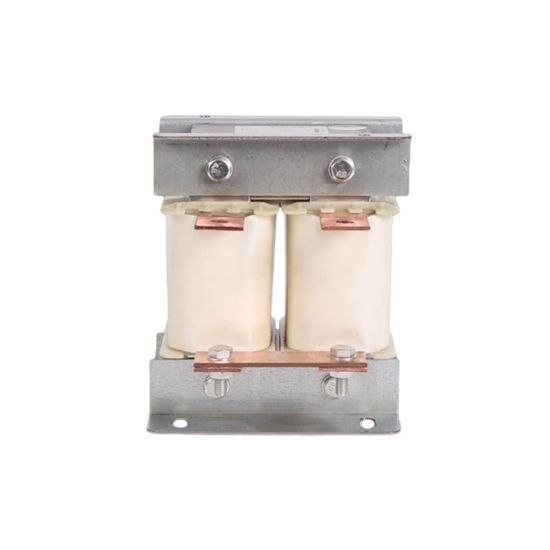

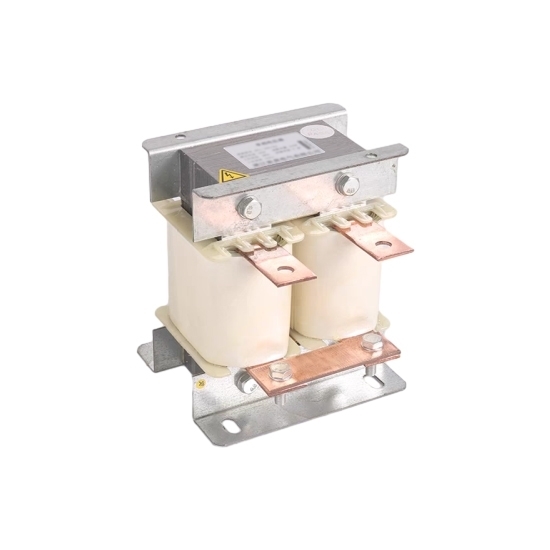

2 Hp (1.5 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$92.89

Ex Tax: $92.89

Stock: In Stock
Model: RDDLZ-DCR-2
Weight: 1.00
SKU: RDDLZ-DCR-2

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1.5kW VFD line reactor, DC smoothing reactor, single phase, rated operating voltage 400V-1200V, material can choose copper or aluminum.

Specification:

Model	RDDLZ-DCL-8
Phase	1 Phase
Power Adapter	1.5 kW (2 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	8A
Inductance	5.3mH
Insulation Grade	F.H
Dimension	84110100mm (LWH)
Mounting Dimension	70*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	2.5kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: What is a DC reactor?

The DC reactor is mainly used for the DC side of the converter, and has more applications on general-purpose inverters. A DC current having an AC component flows through the reactor. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current ripple value, improve the input power factor, and suppress the harmonics generated by the converter.
