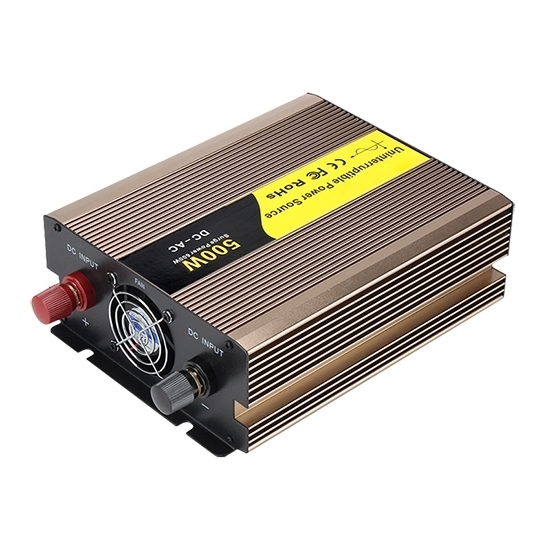

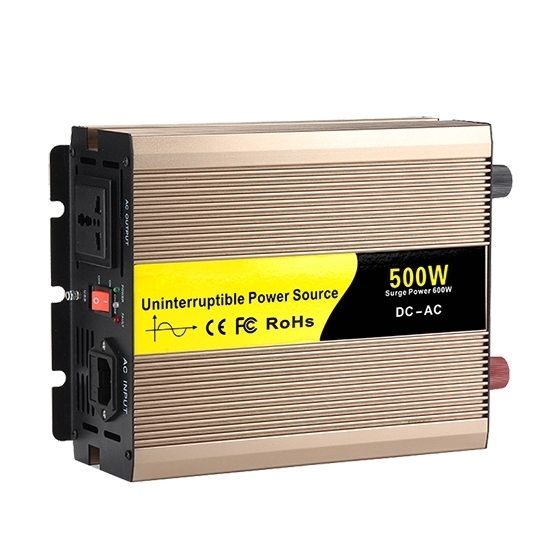

500 watt (550 VA) ups inverter with pure sine wave. 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same.

Features

• 500 watt ups inverter with pure sine wave output (THD＜3%).
• Built-in 3-stages battery charger, allow to run loads while charging.
• Automatically switch with a ultra-fast switching time.
• High efficiency-converts the battery's available power.
• Pure sine wave ups inverter 500W uses soft-start technology.
• 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.

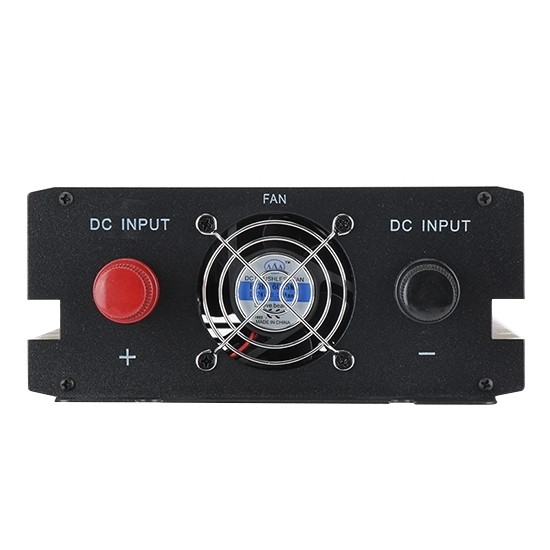

• Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles’ batteries.
• Aluminum shell with good heat dissipation and strong shock resistance.

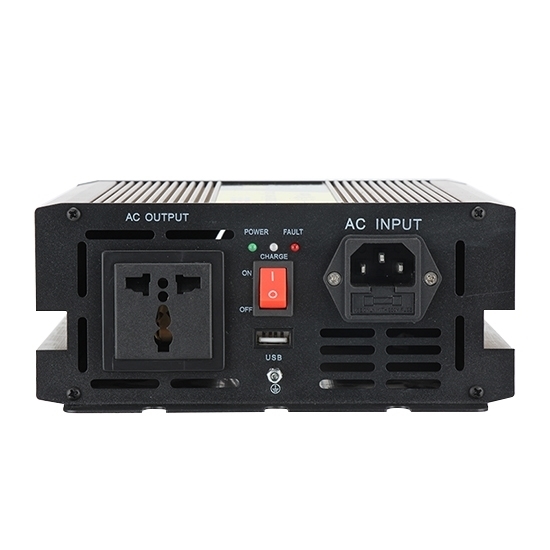

• Uninterruptible power supply with USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
• Intelligent fan for cooling, long use life.
• 550 VA ups inverter with LED indicators for power and protections.
• Switch-mode design in ups inverter, easy to use.

Specification

• Model: RDDLZ-REPU-500
• Rated Power: 500W (550 VA)
• Peak Power: 1000W
• Input Voltage: DC 12V, DC 24V, DC 48V (Optional)
• Output Voltage: 100V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC±5% (Optional)
• Output Frequency: 50Hz±0.5Hz, 60Hz±0.5Hz (Optional)
• Phase: 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
• Output Waveform: Pure sine wave
• Waveform Distortion: THD＜3% (Linear load)
• Cooling Method: Intelligent air cooling
• Power Switching Time: ≤ 9 ms
• USB Port: 5V 1A
• Max. Efficiency: 90%
• Working Temperature: -10 ℃— +50 ℃
• Storage Temperature: -30 ℃— +70 ℃

Dimension (Unit: mm)

UPS Inverter Output Socket (Optional)

Advantages of UPS Inverter

Tips: General Inverter vs. UPS Inverter

The general inverter converts ac to DC to charge and store the battery. In case of power failure, the DC stored in the battery will be converted to AC for the load to use. The primary function of energy storage inverter is to carry out the kinetic energy bi-phase transmission between ac power grid and energy storage battery. It is also a bi-phase converter, which can be compatible with all kinds of DC energy storage units, such as super capacitor banks and battery banks.

The ups (uninterruptible power supply) inverter can provide stable power supply for communication, medical, data platform and other network systems with special demand for power supply in the case of power grid outage or unstable power supply.
