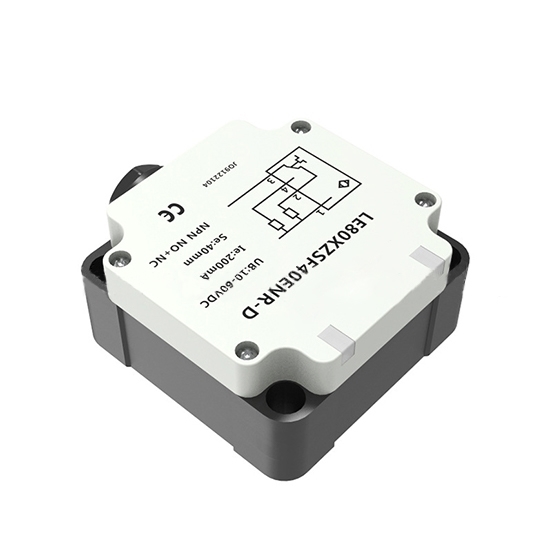

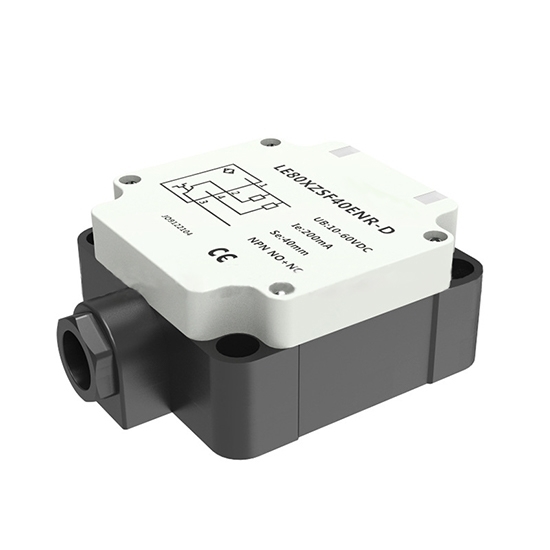

Analog Output Proximity Sensor, Inductive, Square Type, 0-10V/ 0-20mA

0 reviews • Write a review

from

$190.52

Ex Tax: $190.52

Stock: In Stock
Model: RDDLZ-PS-LE80XZ
Weight: 1.00
SKU: RDDLZ-PS-LE80XZ

Available Options

Installation

Output Mode

Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price M12 proximity sensor with voltage/ current/ voltage+current three output methods can be chosen. The flush/ non flush proximity sensor has advantages of simple structure, high sensitivity, low output impedance, strong anti-interference ability and high measurement accuracy. The inductive proximity sensor is widely used in displacement measurement, thickness measurement, material differentiation and other fields.

Specification

Model	RDDLZ-LE80XZ
Installation type	Flush	Non-flush
Rated distance	40mm	50mm
Detection range	8-40mm	10-50mm
Switching frequency	80Hz	40Hz
Standard target	Fe 1201201t	Fe 1501501t
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Connection type	M12 connector/ Terminal connection
Diameter	M12
Supply Voltage	15-30VDC
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	PBT
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Dimension (unit: mm)

Wiring diagram

0-10V 0-10V+ 0-20mA

0-20mA/ 4-20mA

Tips: The function of proximity sensor.

1. Inspection distance
Detect the stop, start, and pass positions of elevators and hoist equipment; detect the position of the vehicle to prevent two objects from colliding; detect the set position of the working machine, the limit position of the moving machine or component; detect the stop position of the rotating body, the valve On or off position.

2. Size control
Size control device for sheet metal punching and shearing; automatic selection and identification of the length of metal parts; detection of the height of stacks during automatic loading and unloading; detection of the length, width, height and volume of objects.

3. Whether the detection object exists
Detect whether there are product packaging boxes on the production packaging line; detect whether there are product parts.

4. Rotation speed and speed control
Control the speed of the conveyor belt; control the speed of the rotating machinery; control the speed and the number of revolutions together with various pulse generators.
