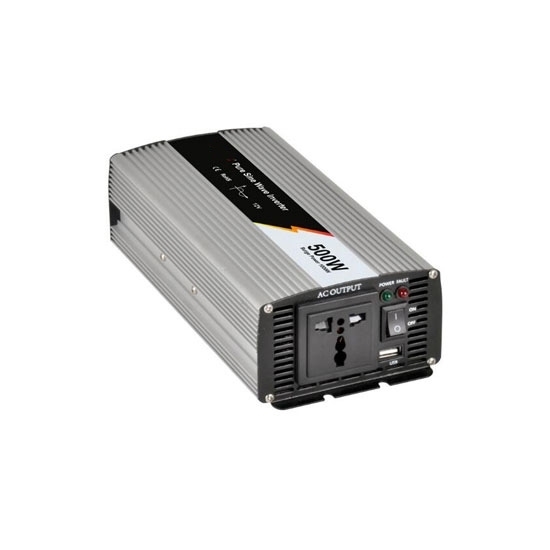

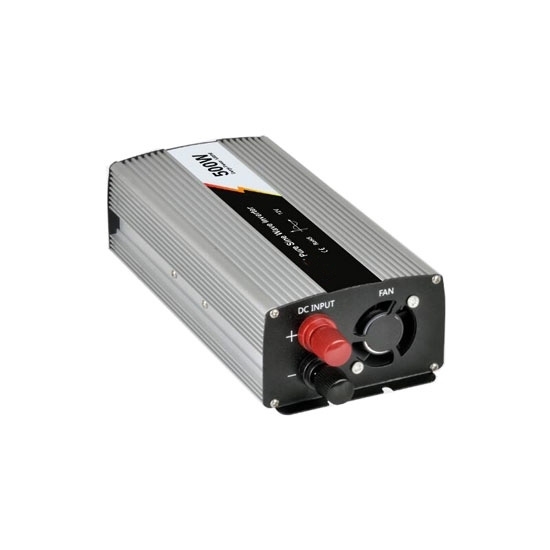

500 Watt Pure Sine Wave Power Inverter, 12V DC To 220V AC

0 reviews • Write a review

from

$145.31

Ex Tax: $145.31

Stock: In Stock
Model: RDDLZ-PI-500W
Weight: 1.00
SKU: RDDLZ-PI-500W

Available Options

Short Description

Remote Control

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap 500 Watt pure sine wave power inverter offers input voltage 12V/24/48V DC and output AC 110/120/220/240V for your choice, with universal AC household outlet and USB port, suitable for powering the electronics or appliances at home, in the car, on the camping or other outdoor activities.

Note: 500W pure sine wave inverter can't power a small refrigerator.

Specification

Model	RDDLZ-PSWI-500
Output Power	500 Watt
Peak Power	1000 Watt
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input Voltage*	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Input DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Output Voltage*	100V AC or 110V AC or 120V AC ±5%			220V AC or 230V AC or 240V AC ±5%
No-load Current (less-than)	0.6A	0.4A	0.3A	0.6A	0.4A	0.3A
Output Frequency*	50Hz±0.5Hz or 60Hz±0.5Hz
Output Wave	Pure sine wave
Waveform Distortion	THD＜3% (linear load)
USB Port	5V 1A
Outlet Type	Universal outlet
Max. Working Efficiency	90.0%
Low Voltage Alarm	10.5V±0.5V	21V±0.5V	42V±1V	10.5V±0.5V	21V±0.5V	42V±1V
Low Voltage Shutdown	10V±0.5V	20V±0.5V	40V±1.5V	10V±0.5V	20V±0.5V	40V±1.5V
Low Voltage Recovery	13V±0.5V	24V±0.5V	48V±1V	13V±0.5V	24V±0.5V	48V±1V
Over Voltage Shutdown	15.5V±0.5V	31V±0.5V	61V±1V	15.5V±0.5V	31V±0.5V	61V±1V
Over Voltage Recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection
Cooling Way	Intelligent air cooling
Remote Control*	Wired control (2m) or Wireless control (30m)
Operating Temperature	﹣10℃~ +50℃
Storage Temperature	﹣30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	25010663mm
Package Size (WHD)	29516080mm
Net./Gross Weight	1kg/1.3kg
Certificate	CE, RoHS
Warranty	12 Months

Features

Provides 500W continuous DC to AC power and 1000W surge power
Pure sine wave inverter, capable of producing clean & stable electricity
Soft-start technology
USB charging port for powering your phone, laptop, etc.
Aluminum alloy casing with good heat dissipation
Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
ON/OFF switch design, easy to use
Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

Protection Functions & Applications

Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Why my inverter alarms when plugged in or under load?

There are serveral reasons regarding the power inverter alarming in such situations:
The aging of the car lines.
Poor connection between the cigarette lighter and the battery.
The connection wire between cigarette lighter and the battery is too thin.
There is an oxide layer on the contacts of the cigarette lighter, causing poor contact.
The wires from cigarette lighter to the battery are relatively thin, unable to bring a lot of load.
