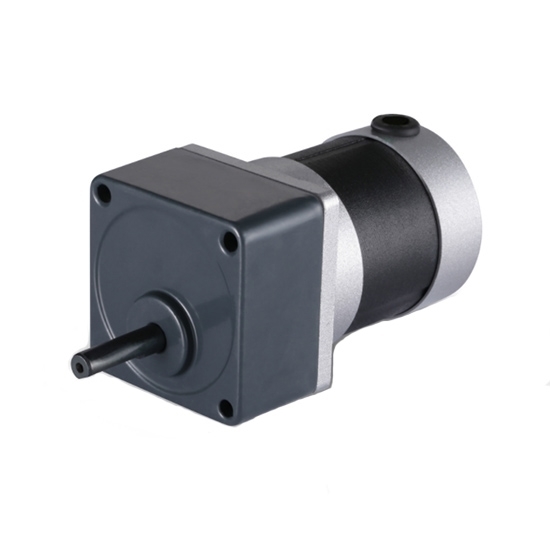

50 W DC Gear Motor, 3000 Rpm, 12V/24V

0 reviews • Write a review

from

$155.03

Ex Tax: $155.03

Stock: In Stock
Model: RDDLZ-BLDC-50
Weight: 1.00
SKU: RDDLZ-BLDC-50

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ good quality DC gear motor is available in 12V, 24V DC voltage, up to 50 watt power, provides high torque at low speed. The DC brushless motor has rated speed of 3000 rpm and rated torque of 0.16 Nm, the 60 mm gearbox has a peak torque of 3 Nm.

50W DC gear motor specifications

Model	RDDLZ-D2BLD50-12	RDDLZ-D2BLD50-24
Power	50W
Weight	2.0 Kg
Voltage	12V	24V
Rated Speed	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm
Rated Current	5.21A	2.6A
Rated Torque	0.16 N.m	0.18 N.m
Peak Torque	0.48 N.m	0.48 N.m
No-load Current	< 0.8A	< 0.4A
Compatible Driver Model	BLD-300B (Click it to the product page)	BLD-120A (Click it to the product page)
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Gearbox Model	2GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	0.39	0.64	0.97	1.29	1.61	1.93	2.32	2.32	2.9	3	3	3	3	3	3	3	3	3	3	3	3
Allowable Torque (kgf.cm)	3.86	6.44	9.66	12.88	16.1	19.32	23.18	23.21	29.02	30	30	30	30	30	30	30	30	30	30	30	30

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

50W DC Motor Dimension:

Gearbox Dimension:

L1=41.5mm

Details

Tips: How to install and operate the gear motor?

Installation and operation of the machine contains a certain risk, then what should we pay attention to when installing and operating the gear motor?

The gear motor should be protected from shock during the installation process. When installing parts on the output shaft of the gear motor, it’s not allowed to knock or press directly on the output shaft.
The wires shall be straight rather than curved, so as to avoid the poor conductivity in the gear motor.
It’s not allowed to rotate the gear box forcefully from the output shaft, otherwise the gears may be damaged. When fixing transmission structures on the output shaft of the gear motor with binders, the bearing can not be pasted. When installing a circular gear motor or planetary gear motor, the length of mounting screw shall be controlled, over length screw may damage the parts in the gear motor.
