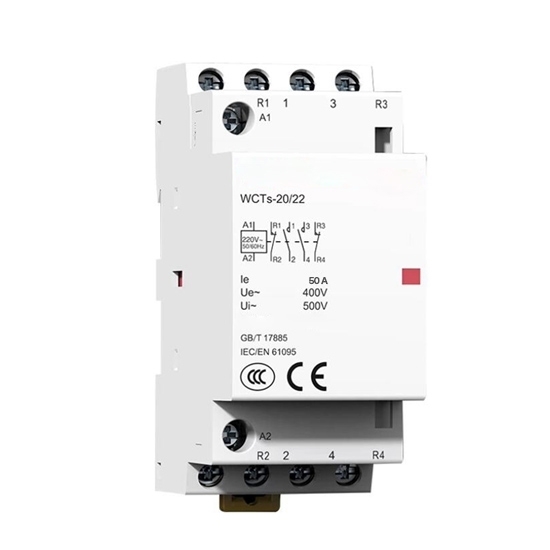

50 Amp 4 Pole Lighting Contactor, 110V/220V Coil

0 reviews • Write a review

from

$78.23

Ex Tax: $78.23

Stock: In Stock
Model: RDDLZ-LCON-50
Weight: 1.00
SKU: RDDLZ-LCON-50

Available Options

Short Description

Coil Voltage(V) for 4 Pole

Contact Type for 4 Pole

Operating Mode

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50 amp 220V/110V ac lighting contactor with 100,000 cycles, 4 pole ac contactor is used to control lighting systems for home appliances. Magnetic contactor has low noise and extra long life, optimizes the electromagnetic system to reduce the maintenance power.

Specifications

Model	RDDLZ-WCT-50
Power Circuit
Voltage rating (Ue)
	4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional Characteristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5kv (4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Operating temperature	-5℃ to 60+℃
Storage temperature	-40℃ to 70+℃
Tropicalization ( IEC 60068-1)	Treatment 2 ( relative humidity 95% at 55℃ )
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements

Lighting Contactor Wiring Test: Demonstrating Operation

A lighting contactor is an electrical device used to control the operation of lighting systems, typically in commercial or industrial settings. It is designed to handle the high current demands of lighting circuits and provide a convenient way to switch multiple lighting loads on and off. The video will conduct a wiring test of the lighting contactor to demonstrate its operational principles.

Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃ and 60°℃, it is necessary to use a spacer, between each contactor.

Consumption

Type	Raring (In)		Control Voltage (V AC) (50Hz)	Consumption		Max Power
	AC7a	AC7b		Holding	Inrush
4P	50A	15A	220-240	6.5VA	53VA	2.1W
			220-240	6.5VA	53VA	2.1W

Contact Type Diagram

Dimension (Unit: mm)

Details

Tips: Types of Contactor Auxiliary Contacts

The main contact, mostly normally open contacts, has a large current carrying capacity, and is mostly used to control motor startup and other controls.
Auxiliary normally open contacts, play an auxiliary role, can be used for self-locking, signal transmission and other circuit requirements.
Auxiliary normally closed contacts, to achieve linkage in complex circuits, sometimes used as motor interlock.
