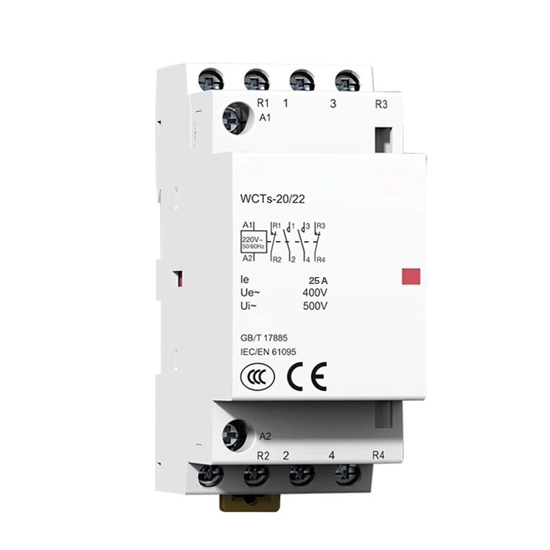

25 Amp 2/4 Pole Lighting Contactor, 24V/110V/220V Coil

0 reviews • Write a review

from

$66.58

Ex Tax: $66.58

Stock: In Stock
Model: RDDLZ-LCON-25
Weight: 1.00
SKU: RDDLZ-LCON-25

Available Options

Short Description

Pole

Coil Voltage(V) for 2 Pole

Coil Voltage(V) for 4 Pole

Contact Type for 2 Pole

Contact Type for 4 Pole

Operating Mode

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25 amp lighting contactor with 100,000 cycles provides reliable and convenient lighting control, 12V/24V/220V/110V coil voltage, 2 pole /4 pole household ac contactor with low noise and extra life, magnetic contactor operates at a safer load, perfect for large-scale industrial and commercial.

Specifications

Model	RDDLZ-WCT-25
Power Circuit
Voltage rating (Ue)	2P	250V AC
	4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional Characteristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5kv (4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Operating temperature	-5℃ to 60+℃
Storage temperature	-40℃ to 70+℃
Tropicalization ( IEC 60068-1)	Treatment 2 ( relative humidity 95% at 55℃ )
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements

Lighting Contactor Wiring Test: Demonstrating Operation

A lighting contactor is an electrical device used to control the operation of lighting systems, typically in commercial or industrial settings. It is designed to handle the high current demands of lighting circuits and provide a convenient way to switch multiple lighting loads on and off. The video will conduct a wiring test of the lighting contactor to demonstrate its operational principles.

Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃ and 60°℃, it is necessary to use a spacer, between each contactor.

Consumption

Type	Raring (In)		Control Voltage (V AC) (50Hz)	Consumption		Max Power
Type	AC7a	AC7b	Control Voltage (V AC) (50Hz)	Holding	Inrush	Max Power
2P	25A	8.5A	24	3.8VA	15VA	1.3W
			48	3.8VA	15VA	1.3W
			220	3.8VA	15VA	1.3W
			230-240	2.7VA	9.2VA	1.3W
			220	3.8VA	15VA	1.3W
			230-240	2.7VA	9.2VA	1.3W
4P			24	4.6VA	34VA	1.6W
			220-240	4.6VA	34VA	1.6W
			24	4.6VA	34VA	1.6W
			220-240	4.6VA	34VA	1.6W
			220-240	4.6VA	34VA	1.6W

Contact Type Diagram

Dimension (Unit: mm)

Details

Tips: The Key of Household Contactor

The key of household contactors is to frequently connect or disconnect, DC circuits, with large control volume, long-distance actual operation, and mutual cooperation with automobile relays can complete the actual operation on time, interlock control, various quantitative analysis control and process Pressure and undervoltage. Household contactors are widely used in fully automatic control power circuits. Its key control target is the motor. It can also be used to control other power engineering loads, such as electric water heaters, lighting fixtures, DC welding machines, capacitor banks, etc. The lighting contactor can be an AC contactor for household appliances.
