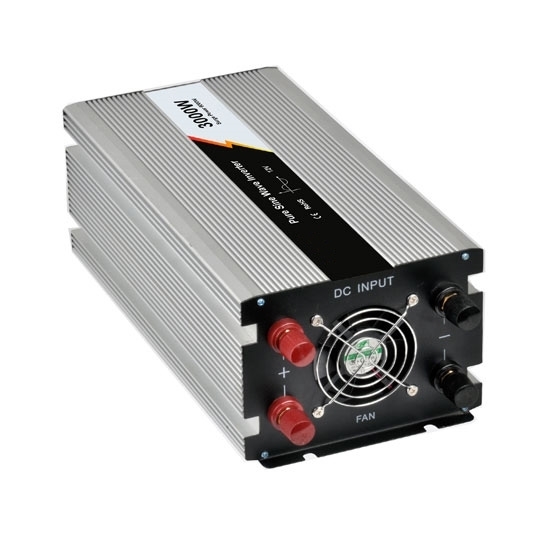

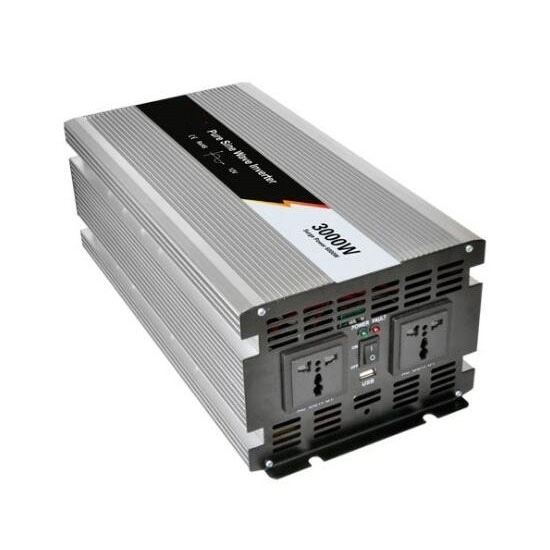

3000 Watt Pure Sine Wave Power Inverter, 24V DC To 120V AC

0 reviews • Write a review

from

$557.78

Ex Tax: $557.78

Stock: In Stock
Model: RDDLZ-PI-3000W
Weight: 1.00
SKU: RDDLZ-PI-3000W

Available Options

Short Description

Remote Control

LCD Display

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Powerful 3000 watts pure sine wave inverter can convert 12V/24V/48V DC battery power into clean & stable 100V/110V/120V/220V/230V/240V AC power, ideal DC to AC inverter for car & home to power your devices like cell phone, laptops, tablets, lights, TV, computer, fan, refrigerattor, washing mashine, microwave oven etc.

Specification

Model	RDDLZ-PSWI-3000
Output Power	3000 Watt
Peak Power	6000 Watt
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input Voltage*	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Input DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Output Voltage*	100V AC or 110V AC or 120V AC ±5%			220V AC or 230V AC or 240V AC ±5%
No-load Current (less-than)	1.3A	0.8A	0.6A	1.3A	0.8A	0.6A
Output Frequency*	50Hz±0.5Hz or 60Hz±0.5Hz
Output Wave	Pure sine wave
Waveform Distortion	THD＜3% (linear load)
USB Port	5V 1A
Outlets Type	2Universal outlet and 4USA outlet
Max. Working Efficiency	90.0%
Low Voltage Alarm	10.5V±0.5V	21V±0.5V	42V±1V	10.5V±0.5V	21V±0.5V	42V±1V
Low Voltage Shutdown	10V±0.5V	20V±0.5V	40V±1.5V	10V±0.5V	20V±0.5V	40V±1.5V
Low Voltage Recovery	13V±0.5V	24V±0.5V	48V±1V	13V±0.5V	24V±0.5V	48V±1V
Over Voltage Shutdown	15.5V±0.5V	31V±0.5V	61V±1V	15.5V±0.5V	31V±0.5V	61V±1V
Over Voltage Recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection
Cooling Way	Intelligent air cooling
Remote Control*	Wired control (2m) or Wireless control (30m)
LCD Display	Display input voltage, output voltage, frequency, power, waveform, battery capacity
Operating Temperature	﹣10℃~ +50℃
Storage Temperature	﹣30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	398180130mm
Package Size (WHD)	470245195mm
Net./Gross Weight	5.6kg/6.9kg
Certificate	CE, RoHS
Warranty	12 Months

Features

Delivers 3000 Watt continuous power and 6000 Watt peak power
Pure sine wave inverter, capable of producing clean & stable electricity
Soft-start technology
USB charging port for powering your phone, laptop, etc.
Aluminum alloy casing with good heat dissipation
Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
ON/OFF switch design, easy to use
Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Pure sine wave power inverter applications

The pure sine wave power inverter can provide clean, stable and high quality AC power, ideal for powering all kinds of electrical appliances including sensitive electronics like air conditioner, refrigerator etc., and resistive electronics, such as bulbs, TV, fans and etc.

More applications see below:

Industrial equipment: solar energy system, solar street light system, etc.
Travel set equipment: vehicles, ambulances, RV, boats, traffic lights, etc.
Office devices: computers, printers, scanners, digital cameras, etc.
Household appliances: electric fans, vacuum cleaners, air conditioning, lighting, microwave, refrigerators etc.
Power tools: pumps, saws, drills, punching machines, air compressors, etc.
