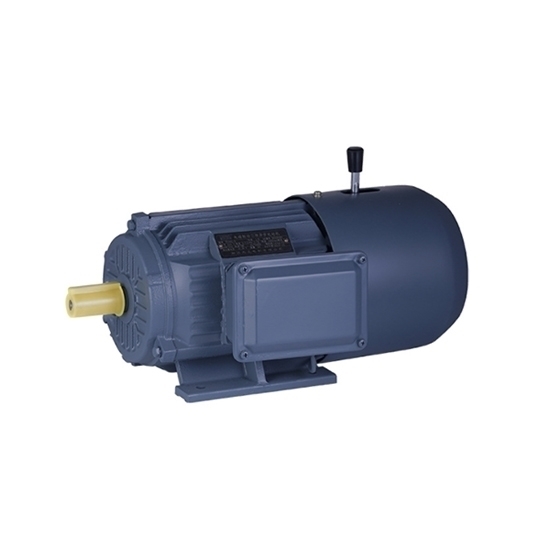

5.5 Hp (4kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$1,422.15

Ex Tax: $1,422.15

Stock: In Stock
Model: RDDLZ-BM-112M
Weight: 1.00
SKU: RDDLZ-BM-112M

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost electromagnetic brake motor with rated power 4000 watt, 2880r/ min/ 1410r/ min speed, static braking torque 40Nm, 90W energizing power and 84% high efficiency.

Specification

Model	RDDLZ-BM-112M-2	RDDLZ-BM-112M-4
Rated power	5.5hp (4kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	13.3 N.m	26.7 N.m
Speed	2880r/ min	1410r/ min
Power factor	0.87 cosφ	0.82cosφ
Weight	72kg	86kg
Efficiency	84%
Static braking torque	40Nm
No-load brake lag time	0.25s
Energizing power	90W
Locked-rotor current/ rated current	7 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
112M	190	140	70	28	60	8	24	112	12	245	240	190	265	510

Details

Tips: Simple CalculationPrinciple for Select Brake Motor.

The choice of brake model depends to a large extent on the required braking torque. In addition, factors such as braking moment of inertia, relative speed, braking time, and operating frequency should also be considered. The following are the styling rules recommended by a certain brake manufacturer. Different manufacturers will have some differences, but the principles are similar.
Calculate the required braking torque: T=K×9550×P/n
Among them:
T——Required braking torque (N.m)
P——Transmission power (kW)
n——Relative speed when the brake is applied (r/min)
K safety factor (take K>2)
