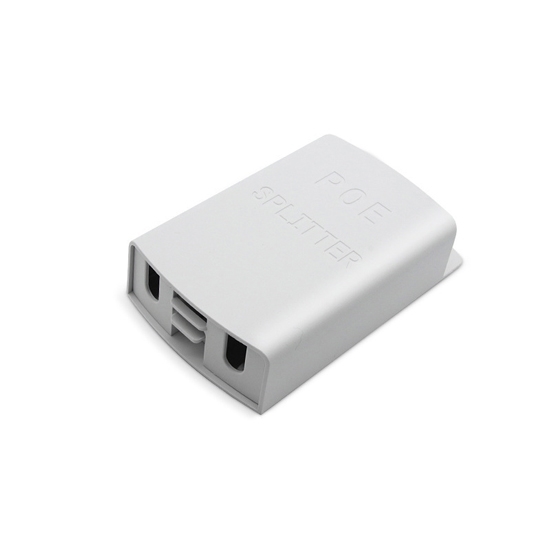

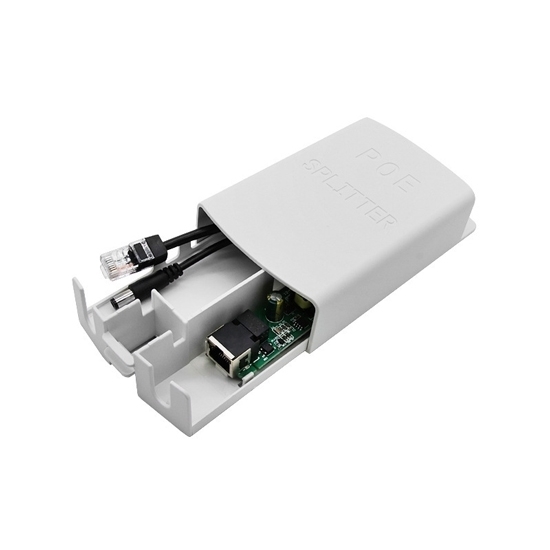

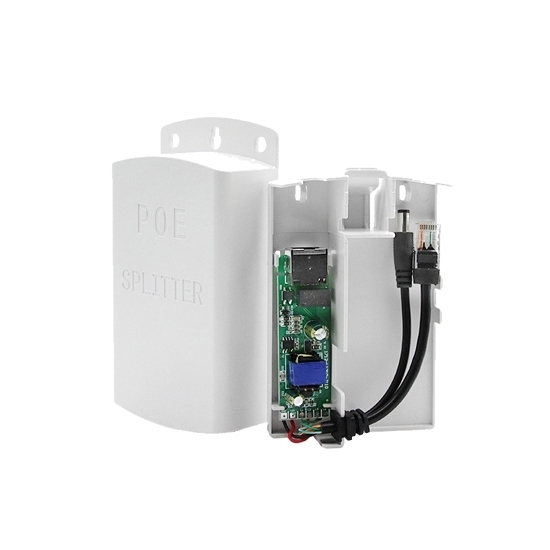

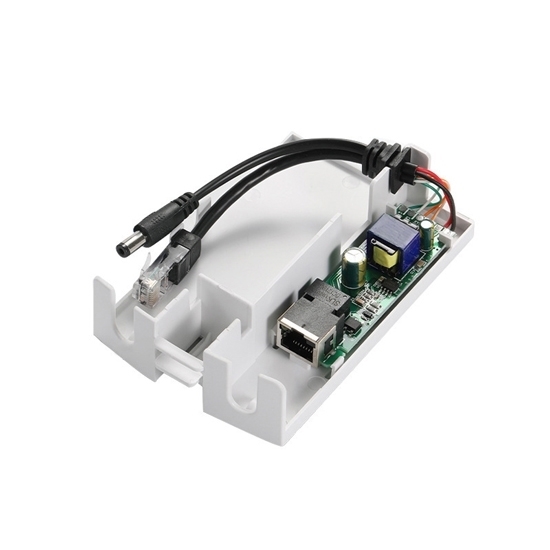

The 48V to 12V power over ethernet splitter for sale, which provides uninterrupted power for outdoor cameras, access points and other PoE-enabled devices. With its durable and weatherproof design, this PoE splitter is ideal for use in surveillance systems, smart city projects and industrial networks.

Specification

• Model: RDDLZ-POES-02AFS
• PoE Voltage: 40V-57V
• Output Voltage: 12V
• Current Output: 2A (max)
• Power Supply: 1/2(+)/3/6(-)
• Compatible Protocol: IEEE802.3-AF/AT
• Maximum Power: 15.4W
• Transmission Rate: 10/100Mbps
• Cable Type: Category 5 and Super Category 5+ unshielded twisted pair
• Waterproof: Yes
• Dimension: 245*28*23 CM
• Operating Temperature: -20°C~+60°C
• Operating Humidity: 0-90% (non-condensing)

Features

• Fully waterproof outer case construction for outdoor rain protection, simple operation and easy installation.
• The PoE splitter uses a Category 6 all-copper cable for smooth monitoring without lagging and a stable network without dropping cables.
• The industrial poe splitter has power failure protection, circuit protection, voltage protection, circuit isolation protection to ensure the quality and integrity of data transmission, thus achieving a reliable network connection.
• RDDLZ PoE splitters are designed to work with various PoE standards, such as IEEE 802.3af and IEEE 802.3at, ensuring compatibility with a wide range of PoE-enabled devices and network equipment.

Dimension (unit: mm)

Plug Options

Wiring Diagram

Applications

The application of PoE splitter is widespread in various industries. In security systems, PoE splitters are used to power IP cameras, enabling easy deployment and flexibility in camera placement without the need for electrical outlets. In networking environments, PoE splitters can power wireless access points, ensuring seamless connectivity in areas where power sources are limited.

Tips: What is a PoE splitter?

A Power over Ethernet (PoE) splitter is a device used in networking to separate power and data signals from a single Ethernet cable. PoE technology allows network devices, such as IP cameras, wireless access points, and VoIP phones, to receive power and data over a single Ethernet cable, eliminating the need for separate power cables.

A PoE splitter is typically used when a network device does not have built-in PoE support but still requires power. The splitter connects to the Ethernet cable coming from a PoE switch or injector, and it splits the combined power and data signal into separate power and data outputs.

The power output from the PoE splitter can be connected to the power input of a non-PoE device, providing the necessary power for its operation. The data output is then connected to the Ethernet port of the device to enable data communication with the network.

PoE splitters usually come with different power output options to match the power requirements of the device being powered. They can be passive or active. Passive splitters simply split the power and data without any additional processing, while active splitters may include features like voltage regulation and surge protection.
