2-1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$474.77

Ex Tax: $474.77

Stock: In Stock
Model: RDDLZ-ANGLE-65
Weight: 1.00
SKU: RDDLZ-ANGLE-65

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

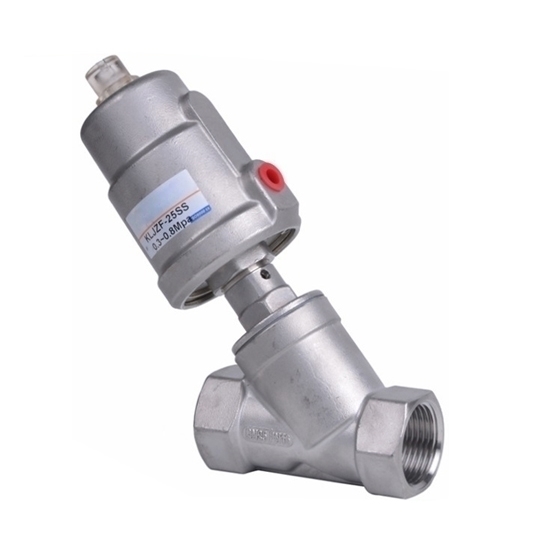

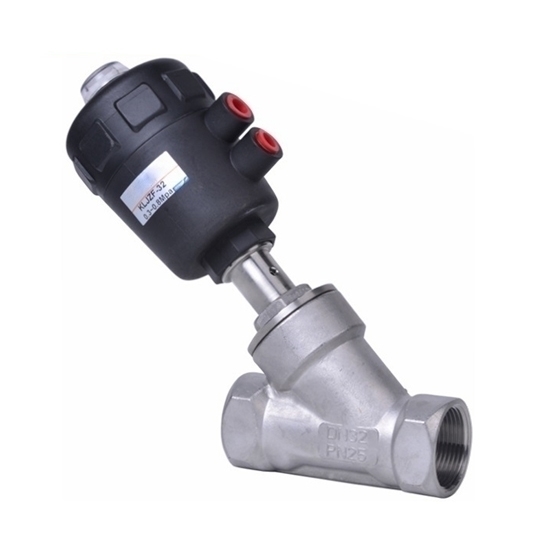

High performance and low price pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN65
Pipe Thread Type: 2-1/2 inch (DN65), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
100	96	52	ZG1/8"	ZG2-1/2"	280	252	185	30

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
100	ZG2-1/2"	155	252	26	126	73	140	300

Tips: Angle seat valve cannot be used as throttle valve

The pneumatic angle seat valve is an angle valve with a pneumatic actuator. The valve core is similar to the globe valve, which can maintain the flow rate and save space. Normally open or normally closed should be selected. The purpose of the angle seat valve is to close or open the flow. When the valve opens, the force in the pipe drops to a low level.

Angle seat valves cannot be used as throttle valves and should be in the fully closed or fully open position, otherwise the damage to their sealing surfaces will be accelerated. When the valve is closed, it should be closed tightly. If there is a gap at the sealing surface, the medium will flow out from the gap at a high speed, thereby accelerating the damage of the sealing surface. Because when the throttle valve is fully opened, the flow rate cannot reach the required value.
