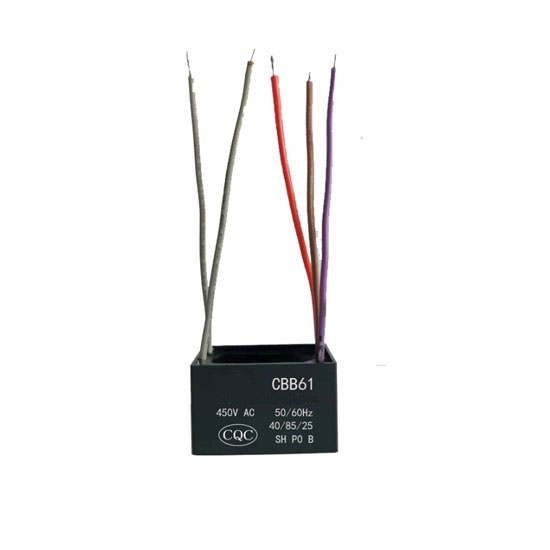

450V Ceiling Fan Capacitor, 2μF+2μF+3μF

0 reviews • Write a review

from

$1.56

Ex Tax: $1.56

Stock: In Stock
Model: RDDLZ-FC-CBB61-223
Weight: 1.00
SKU: RDDLZ-FC-CBB61-223

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ceiling capacitor for fan speed control, capacity 2mfd+2mfd+3mfd, rated voltage 450V AC or 500V AC, can be used for starting and running of single-phase motors, also for regulating motor speed.

Specification

Model: RDDLZ-FC-CBB61-223
Capacity: 2μF+2μF+3μF
Rated Voltage: 450V/500V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/85/23
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 25(L) x 35(H)mm
Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: How to determine whether the capacitor is damaged?

For example, if the fan does not turn because of overheating, there is a motor inside, it has an overheating circuit breaker, if the heat exceeds a certain range within a short period of time, or its motor bearing is stuck, it will also lead to damage to the capacitor.
We can also use the capacitance meter to measure, connect the positive and negative pole of the capacitor meter with the capacitor, if the value is normal, it means there is no problem. But if it is obviously lower than the standard capacity, it means that the capacitor of the electric fan has been damaged.
You can also use a multimeter to measure the relevant value, after connecting, the meter The needle swings around and returns to the original position, it means that the good. But if will not turn back, it means that the capacitor is damaged.
