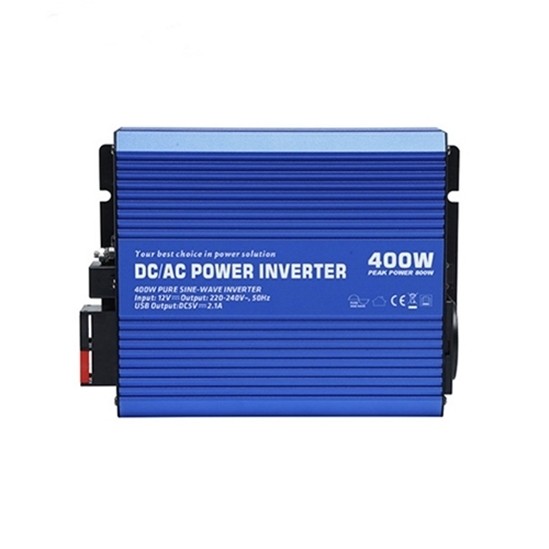

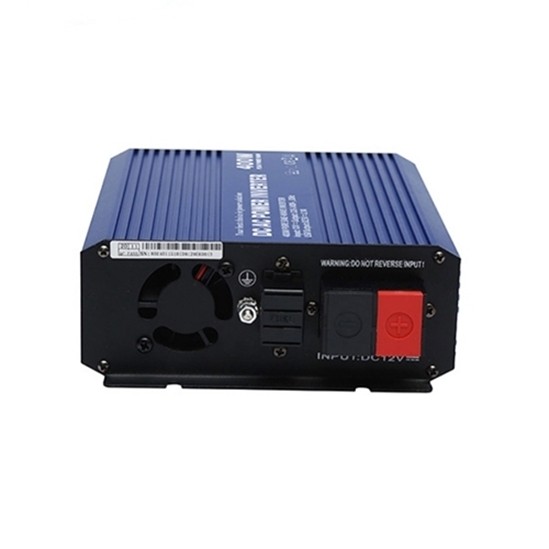

400 Watt Pure Sine Wave Power Inverter, 12V DC To 110V AC

0 reviews • Write a review

from

$145.65

Ex Tax: $145.65

Stock: In Stock
Model: RDDLZ-PI-400W
Weight: 1.00
SKU: RDDLZ-PI-400W

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable 400 Watt pure sine wave power inverter for sale. This powerful inverter converts 12V/24V DC to 220V/110V AC and delivers pure sine wave output, ensuring your sensitive electronics operate smoothly and safely. With very low idle consumption and multiple protections, it’s the ideal power solution.

Specification

Model	RDDLZ-P400
Output Power	400W
Peak Power	800W
Output Voltage*	110V/220V (±5%)
Output Frequency	50/60Hz±3%
No-load Current (less-than)	≤0.5A
Output Wave	Pure sine wave
USB Port	5V 2.1A
Protection	Under-voltage reminder, automatic shutdown, over-temperature, over-voltage, short circuit, reverse polarity, leakage, overload protection
Input Voltage	12V/24V
Fuse	50A1/25A1
Cooling Fan	With load and temperature control
Weight (net)	1.4kg
Humidity	≤90%, non-condensing
Size	21515558mm
Certificate	CE-EMC/LVD,ROHS

Features

400W output power and 800W peak power
Converting 12V/24V DC to 220V/110V AC efficiently
USB ports for various devices
Aluminum alloy shell with good heat dissipation
Intelligent control chip and <10ms transfer time
Multiple protections against short-circuit, overload, over-temperature, over-voltage, and reverse polarity
Pure sine wave, stable power output
Cooling fan with excellent thermal management

Details

Wiring Diagram

Applications

Tips: How to reset this 400W pure sine wave inverter after overload protection is triggered?

First, disconnect all connected load devices and check whether the total power exceeds 400W (or if the starting power exceeds the limit) to rule out "equipment overload" issues.
Next, inspect the input voltage (e.g., whether the car battery voltage is below 10.5V or above 15V, as battery undercharge/overcharge may trigger low/high voltage protection, which exhibits symptoms similar to overload protection). If no issues are found, turn off the 400 Watt pure sine wave power inverter's power switch and wait 3-5 minutes (to allow the internal protection circuit to reset).
Then, turn the switch back on, and the inverter should resume normal operation. If the protection is repeatedly triggered, further troubleshooting of the load or input power source for potential faults is required.
