Note: This Y type strainer cannot be used for drinking water.

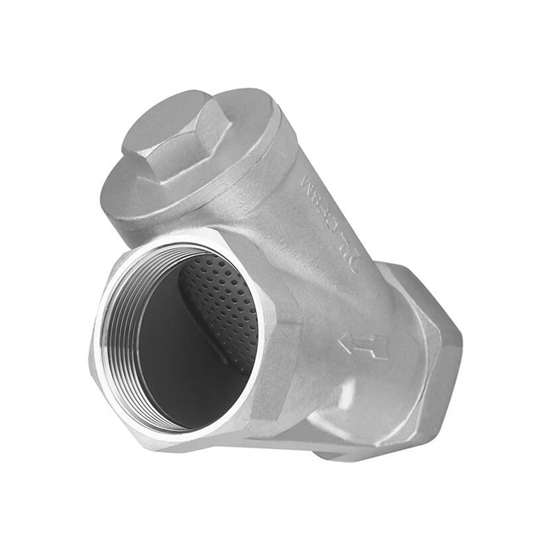

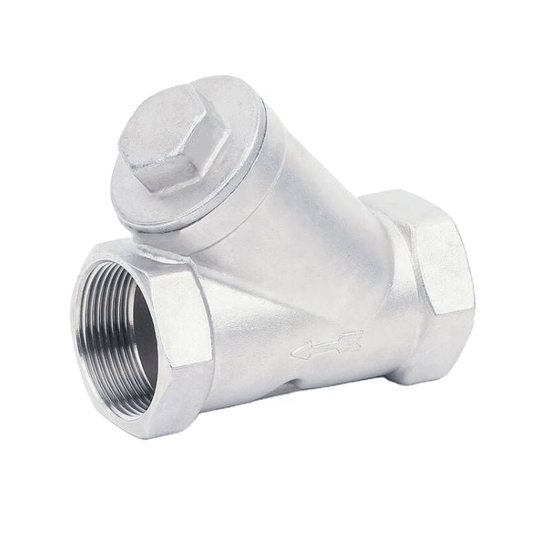

4" (DN100) stainless steel Y strainers for sale online. It is a y-type filter with 800PSI working pressure, SS 304/316 material and optional BSP, BSPT, NPT thread standards, can be used to remove unwanted particles, debris and other impurities.

Specifications

• Model: RDDLZ-T11F-800WOG (P/R)
• Type: Y Type Strainer
• Nominal Diameter: 4 inch (DN100)
• Working Pressure: 800PSI
• Product Material: 304/316 Stainless Steel
• Connection Form: Thread
• Thread Standard: BSP, BSPT, NPT
• Temperature Range: -20°C~180°C
• Weight: 6.095kg

Dimensions (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Why use a Y-type strainer?

A Y-type strainer is used to remove unwanted debris and particles from fluid pipelines. These particles can come from a variety of sources, such as rust, sediment, dirt, or other foreign materials. If left unchecked, these particles can cause damage to downstream equipment, such as pumps, valves, and heat exchangers, and can also negatively impact the quality of the fluid being processed.

By installing a Y-type strainer in the pipeline, the unwanted debris and particles are caught in the strainer's filter element, preventing them from reaching downstream equipment. This helps to protect equipment from damage, reduce maintenance costs, and extend the lifespan of the system.
