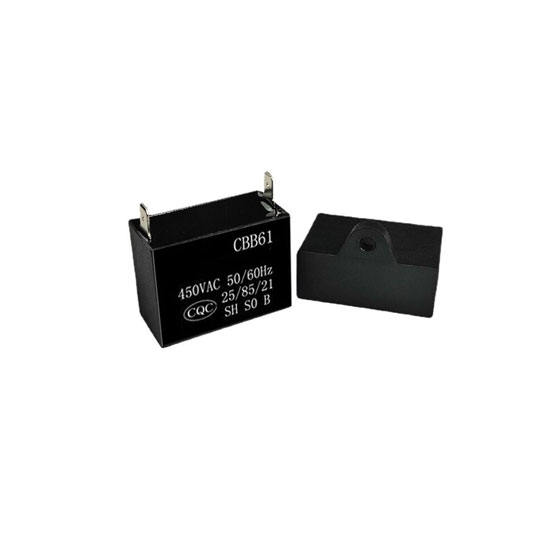

4μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$2.69

Ex Tax: $2.69

Stock: In Stock
Model: RDDLZ-FC-CBB61-040
Weight: 1.00
SKU: RDDLZ-FC-CBB61-040

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy square ceiling fan capacitor with 4 mfd capacity online, rated voltage 450V AC, CBB61 type capacitors are suitable for starting and running of various electrical appliances motors with 50/60Hz AC power supply frequency.

Specification

Model: RDDLZ-FC-CBB61-040
Capacity: 4μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 47(W) x 17(L) x 31(H)mm
Certificate: CE, CQC

4μF Ceiling Fan Capacitor Wiring Diagram

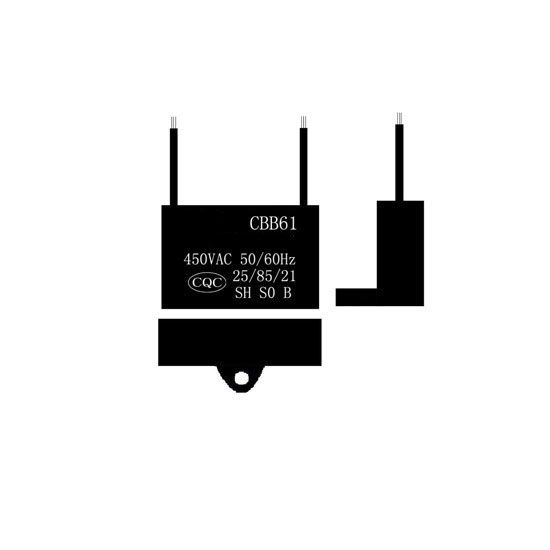

Ceiling fan capacitor details

Tips: What are the common problems of home electric fans?

The speed switch is stuck and rusted, add lubricant to solve.
The electric fan will not swing the head, swing motor damage, replace the swing synchronous motor to solve.
The electric fan is very noisy and has vibration, caused by the deformation of the wind blade, replace the wind blade to solve.
The electric fan motor connector is broken, replace the plastic connector with a new one.
Electric fan swing head function is not, check the swing switch is not damaged, replace.
