3500 Lbs 12V/24V ATV Electric Winch

0 reviews • Write a review

from

$392.46

Ex Tax: $392.46

Stock: In Stock
Model: RDDLZ-WINCH-3500
Weight: 1.00
SKU: RDDLZ-WINCH-3500

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

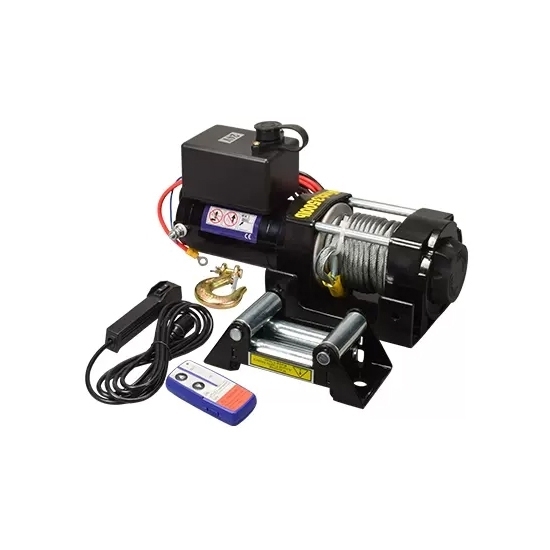

3500 lbs 12V/24V ATV Electric Winch comes with the upgraded accessory kit, which includes a set of wired and wireless remote controller tools, control box, cable steel, universal mounting plate, hook, and roller fairlead to offer you an excellent working performance. This cheap winch is designed to fit most any 4x4 vehicle, as well as trailers, RVs and similarly sized vehicles. Its ease of use also makes it an excellent utility winch.

Features

High efficiency 1.2kW/1.6hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
3500 lbs pull capacity elctric winch for ATV/UTV with compact structure and affordable price.
Dual remote control mode, wired remote control and wireless remote control.
Free spooling with sliding ring gear, easy to operate.
Designed to keep dust and water out with an IP67 waterproof rating.
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
100% testing on winch pulling capacity and function before shipping.

Specification

Model	RDDLZ-3500LB
Input Voltage	12V/ 24V DC (Optional)
Horizontal Traction	3500lbs (1590kg)
Vertical Lifting Weight	150kg
Motor Power	1.2kW/1.6hp
Control Mode	Wireless & Handle Dual-Use
No Load Speed	3.3m/min
Cable (Dia x L)	Ø5.5mm x 8m
Motor Material	All-Copper Core Motor
Packaging Size	373115cm
Gross Weight	9kg

3500 lbs of tension at different rope lengths

Horizontal Tension within 1.5 Meters	3500lbs (1590kg)
Horizontal Tension within 3.5 Meters	2320lbs (1052kg)
Horizontal Tension within 5.9 Meters	1891lbs (858kg)
Horizontal Tension within 8.7 Meters	1587lbs (720kg)

Dimension (Unit: mm)

Details

Tips: Precautions during use of electric winch

When using an electric winch, try to ensure that the towing vehicle and the towed vehicle are in a straight line. Otherwise, not only will the traction force be offset, but the winch cable will be entangled at one end. If the angle cannot be adjusted, use the directional pulley. When hauling heavy objects or vehicles, pay attention to the battery voltage at all times. If the battery voltage is too low, stop operation immediately and force the generator to charge by increasing the engine speed to increase the battery voltage (because the motor power of the electric winch is fixed). The lower the battery voltage, the greater the current through the battery and the control relay. Therefore, when the battery voltage is low, forcing the use of a winch is easier to shorten the service life of the battery and the relay in the control box, and reduce the rope winding speed). Try to avoid excessive water wading, reduce uninterrupted operation of the winch for a long time to prevent the relay from overheating.
