3D Electronic Compass Sensor, 0°-360°, RS232/RS485/TTL/RS422

0 reviews • Write a review

from

$1,116.54

Ex Tax: $1,116.54

Stock: In Stock
Model: RDDLZ-CPS-HCM365
Weight: 1.00
SKU: RDDLZ-CPS-HCM365

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

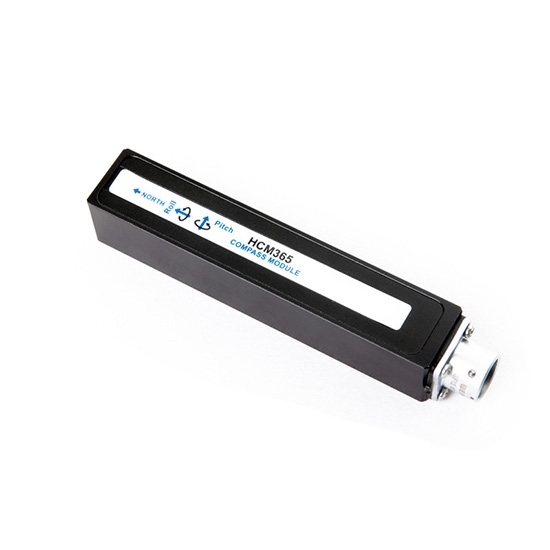

Factory price 3D electronic compass sensor adopts high-precision magnetometer technology and is widely used in fields such as drones, robots, navigation, and car navigation, providing stable and accurate attitude data.

Features

3D electronic compass sensor has hard magnetic, soft magnetic and tilt compensation, and the compass outputs calibrated high-precision measurement values.
It uses the central processor to solve the heading in real time, and uses a three-axis accelerometer to compensate the tilt angle, so that it can provide accurate heading data even in extremely harsh environments.
The compass sensor is precisely designed, the linearity is compensated again, and it integrates comprehensive protection functions such as short circuit, instantaneous high voltage polarity, surge, etc. The operating temperature reaches the industrial level of -40℃~85℃.

Specification

Model	RDDLZ-HCM365
Range	heading 0-360°, full attitude
Accuracy	heading 0.3-0.5°, tilt 0.1°
Working voltage	DC +5V
Working temperature	-40~+85℃
Protection level	IP67 (customizable IP68)
Size	1132020mm
Output	RS232/RS485/TTL/RS422 (optional)
Performance Indicators
Compass heading parameters	Heading accuracy	0.3~0.5° (RMS, pitch<85°)
	Resolution	0.1°
	Repeatability	0.05°
Compass tilt parameters	Pitch accuracy	0.1°
	Roll accuracy	0.1° (pitch<65°)
		0.2° (pitch<80°)
		0.5° (pitch<86°)
	Tilt resolution	0.01°
	Tilt range	Pitch ±90°, Roll 360°
Calibration	Hard iron calibration	✔
	Soft iron calibration	✔
	Tilt calibration	✔
Physical characteristics	Dimensions	L113x W20 x H20 (mm)
	Weight	110g
	RS-232/RS485 interface connector	5-pin aviation plug
Interface characteristics	Startup delay	<50ms
	Maximum sampling rate	50 times/second
	RS-232 communication rate	2400~19200 baud rate
	RS-485 communication	Optional
	TTL communication	Optional
	Output format	Hexadecimal
Power supply	Supported voltage	DC+5V (customizable 9~36V)
	Current (maximum)	40mA
	Operating mode	30mA
Environment	Storage range	-40℃~+125℃
	Operating temperature	-40℃~+85℃
	Vibration resistance	3000g

Note: The default horizontal installation (when the compass is placed horizontally, the roll and pitch angle outputs are zero degrees), and the connector needs to be installed vertically downward (when the compass is placed vertically downward, the roll and pitch angle outputs are zero degrees). Please specify when ordering.

Dimension (mm)

Electrical Connection

RS232 Wiring Definition

Line Color Function	RED	WHITE	BLACK	GREEN	YELLOW
	1	2	3	4	5
	VCC	NC	GND	RXD	TXD

RS485 Wiring Definition

Line Color Function	RED	WHITE	BLACK	GREEN	YELLOW
	1	2	3	4	5
	VCC	NC	GND	(B, D+)	(A, D+)

TTL Wiring Definition

Line Color Function	RED	WHITE	BLACK	GREEN	YELLOW
	1	2	3	4	5
	VCC	NC	GND	RXD	TXD

RS422 Wiring Definition

Line Color Function	RED	BLACK	GREEN	YELLOW	WHITE	BROWN
	1	2	3	4	5	6
	VCC	GND	RXD- (B-)	RXD+ (A+)	TXD+ (A+)	TXD- (B-)

Applications

3D electronic compass sensors are widely used in various fields, including individual combat equipment, precision laser platforms, petroleum geological logging, tilt monitoring, underwater navigation, satellite solar array positioning, ocean surveying, unmanned aerial vehicles, ship navigation attitude measurement, and GPS navigation.

Tips: Precautions for installing 3D electronic compass sensors

Although the 3D electronic compass sensor can compensate for magnetic interference, in order to ensure the best measurement effect, users should choose an environment with minimal magnetic interference for installation and use. It is recommended to stay away from magnetic materials such as iron, nickel, magnets, and engines, and keep a distance of at least 0.5 meters. If there are these magnetic materials around, special attention should be paid. To ensure the best measurement effect of the product, non-magnetic screwdrivers and non-ferrous screws must be used during installation. In particular, strong magnetic materials such as magnets and motors should be kept at least 10 cm away from the compass to avoid affecting the measurement accuracy and causing irreversible errors.
