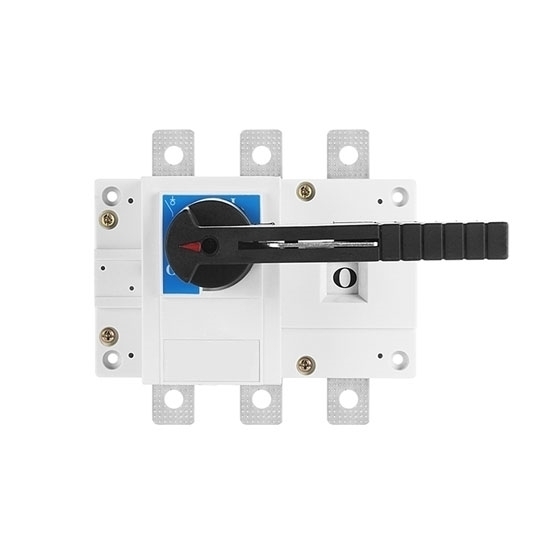

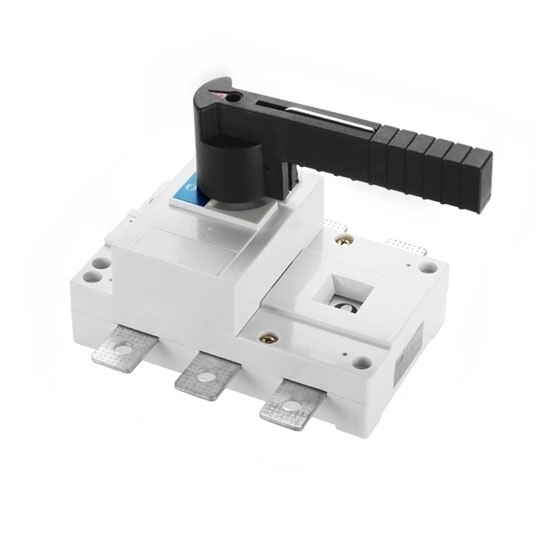

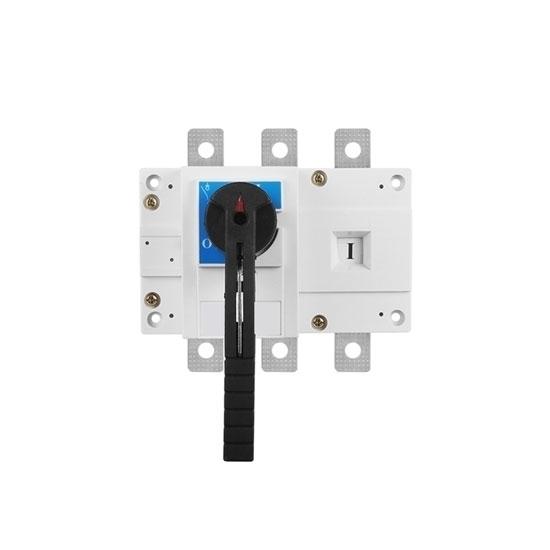

350 Amps Isolator Switch, 3 Pole/ 4 Pole

0 reviews • Write a review

from

$199.89

Ex Tax: $199.89

Stock: In Stock
Model: RDDLZ-IS-HGL350A
Weight: 1.00
SKU: RDDLZ-IS-HGL350A

Available Options

Number of Poles

Load Operation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Pole or 4 pole isolator switch rate current 350A, used for infrequent connection and segmentation circuit and electrical isolation. Good quality and low price, manufacturer direct sale.

350A Isolator Switch Specifications

Basics	Model			RDDLZHGL-350A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	4.3 kg
			4 Pole	4.3 kg
Technical Parameters	Rated current			350A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			6
	Rated working current le	380V	AC-21	315A
			AC-22	315A
			AC-23	315A
		660V	AC-21	315A
			AC-22	315A
			DC-23	125A
		220V	DC-21	315A
			DC-22	315A
			DC-23	315A
		440V	DC-21	315A
			DC-22	315A
			DC-23	315A
	Motor power P(380V) kW		380V	160 kW
			660V	185 kW
	Rated short-time withstand current lcw (kA rms)0.1s/ 1.0s			12.5
	Rated breaking capability Icn (Arms) AC23 380VA			2520
	Rated making capacity Icm (Arms) AC23 380V			3150
	Rated short-current making capacity Icm' (Kapeak value)			25.2
	Mechanical durability (number of cyclic operation)			10000
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1700
			COSφ=0.65AC22	100
			COSφ=0.35AC23	500
Working Environment	Moment of operation			1.2 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

Dimension

Current	A	B	C	D	D1	E	ΦL	J	K	N	P	R	S	U	ΦX	Y	F	H
350A/3P	230	240	179	50	137	115	7	210	140	135	65	32	40	206	11	37	95	20
350A/4P	290	240	179	520	137	114	7	210	140	135	65	32	40	206	11	37	95	20

Operation Mode

Details

Tip: Precautions for isolator switch operation

1. During the overhaul of electrical equipment, provide an electrical interval and a clearly visible disconnection point to ensure the personal safety of maintenance personnel.
2. Isolating switch cannot be operated with load: it cannot be operated with rated load or large load, load current and short-circuit current cannot be divided or combined, but the circuit with small load and no-load circuit can be operated with arc extinguishing chamber.
3. In general power transmission operation: first close the isolating switch, then close the circuit breaker or load switch; when the isolating switch is powered off: disconnect the circuit breaker or load switch first, and then disconnect the isolating switch.
4. The selection is the same as other electrical equipment, and its rated voltage, rated current, dynamic stable current, thermal stable current, etc. must meet the needs of the use occasion.
