30A 30V 900W Variable DC Power Supply

0 reviews • Write a review

from

$663.18

Ex Tax: $663.18

Stock: In Stock
Model: RDDLZ-DCPS-30
Weight: 1.00
SKU: RDDLZ-DCPS-30

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

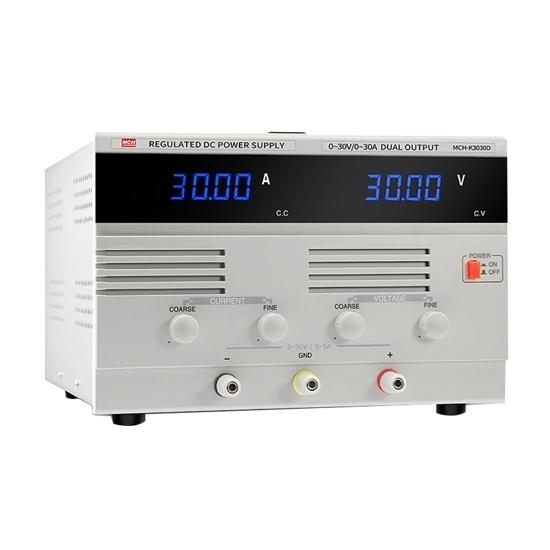

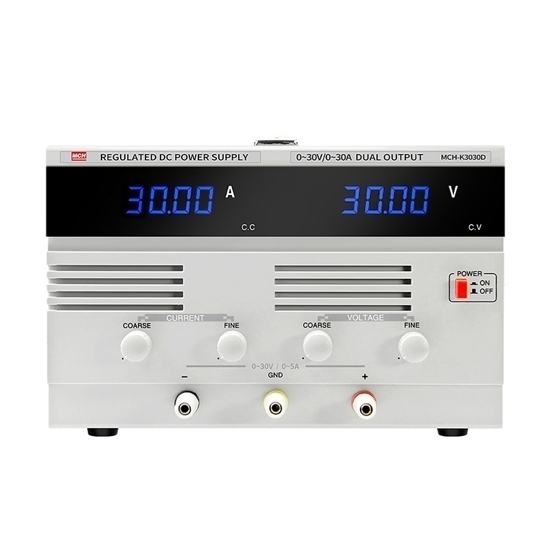

Good price variable DC power supply is high power of 900W, 0-30A continuous variable output current, 0-30V continuous variable output voltage, it also comes with constant voltage and current operation mode, 4 digit LED display, suitable for the laboratory, electronic, communication equipments maintenance, products line, scientific research and teaching units.

Specifications

Model		RDDLZ-K3030D
Input Voltage		110V or 220V AC (+/- 10%)
Output Voltage Range		0-30V
Output Current Range		0-30A
Output Power		900W
Frequency		50Hz/60Hz
Output Type		Single output with low power situation connectors (front) and high power situation connectors (back)
Display		4 digit
Voltage Display Accuracy		±0.5%
Current Display Accuracy		±0.5%
Efficiency		>85%
Voltage Regulation
Load Regulation (10-100%)		50mV
Line Regulation (200-240VAC)		20mV
Ripple & Noise (P-P)		50mV
Current Regulation
Load Regulation (10-100%)		20mA
Line Regulation (200-240VAC)		20mA
Ripple & Noise (P-P)		20mA
Others
Protection		Over load and over valtage protecion
Operating Ambient		-10℃ to + 60℃/ 30%RH to 90% RH
Certification		CE, RoSH
Warranty		12 Months
Size		380 (W) x 260 (H) x 170 (D) mm
Weight		15kg
Package List		1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual

Tips

Ripple is an important parameter to mark the performance of DC power supply. Generally, manufacturers will provide technical data truthfully, which can be used as a comparative parameter. Users can also easily measure the ripple voltage of DC power supply by themselves through oscilloscope. It should be noted that the ripple of the same power supply is usually different under different loads. Generally, the measured ripple is under full load. In practical test and application, ripple is allowed to exist, as long as it meets the standard, but big enough. In fact, both linear power supply and switching power supply must have ripple, but the size is different. Through various means, it is only to restrain as much as possible and can not eliminate the ripple completely. The real zero ripple DC power supply can only be provided by the battery.
