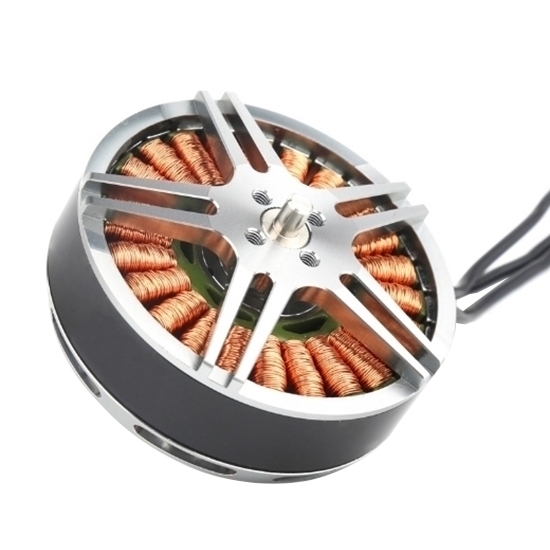

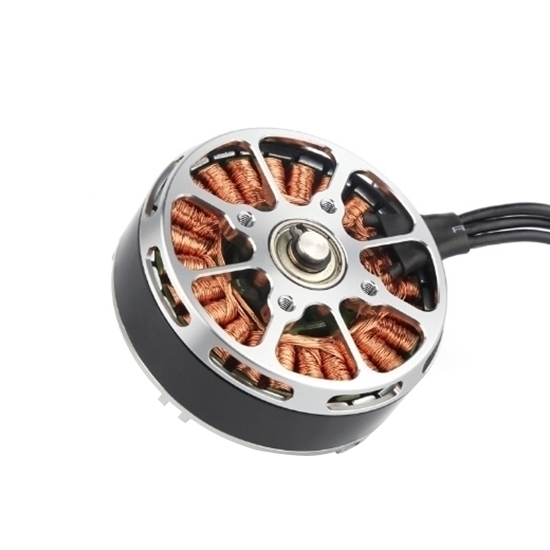

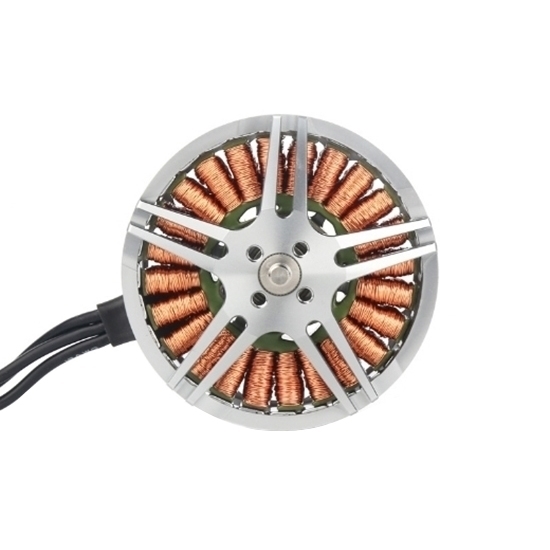

Buy a cheap brushless motor for a multirotor drone. Small drone motor features 300KV, disc type, with stator diameter 52 mm, stator thickness 10 mm, rotary wing drone motor battery 4-6S. 300KV brushless motor for multirotor drone uses patented stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power.

Specifications

Model: RDDLZ-V5210
Motor KV: 300
Number of Stator Slots: 24
Number Of Rotor Poles: 28
Motor Internal Resistance: 76mΩ
Motor Size: φ59*31.1 mm

Shaft Diameter: 4 mm
Stator Diameter: 52 mm
Stator Thickness: 10 mm
Motor Silicone Wire: 20AWG 600 mm
Weight (Including Wire): 200g
Rated Voltage (Lipo): 4-6S

No-Load Current: 0.9A/10V
Max Continuous Power: 1100W
Max Continuous Current: 44A/ 30s
Recommended ESC: 40-60A
Recommended Propeller (inch): CN17*6.2/ CN22*6.2/ C18/ C20
Recommended Take-Off Weight of Single Axis: ≤1800g

Features

• 300KV brushless motor is designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.
• With the guarantee of strength, the caps of brushless motors are highly hollow-cutted to save weight, so these motors can reach the maximum thrust-to-weight ratio and gain more flight time.
• The brushless drone motor series uses a patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power.

Dimensions (Unit: mm)

Tips: How to select the right multi-rotor drone motor?

• Motor: The motor of the multi-rotor drone should consider the weight of the entire drone, and the maximum pulling force of the motor should be selected according to the weight of the entire drone.
• KV: KV value of the multi-rotor drone motor is the rate of change of the motor's idle speed per minute under 1V voltage. For a motor of the same power, the higher the KV value, the faster the speed change per unit voltage, which means the faster the response speed that can be achieved.
• Size: The size of the multi-rotor UAV motor, according to the KV value to select a number of suitable motors, then we need to see whether the motor can be installed on the rack, that is, we need to consider the size of the motor.
