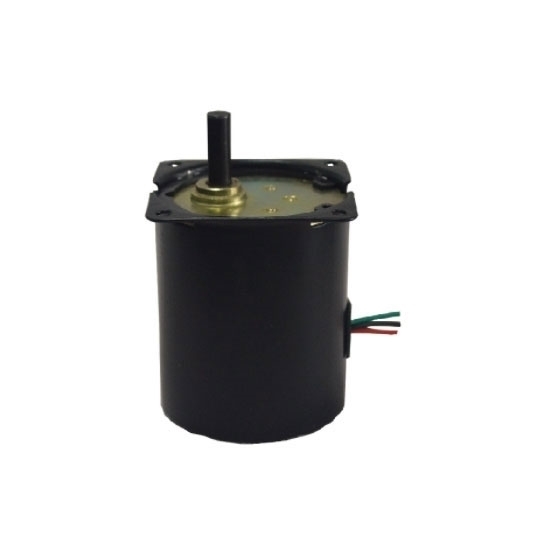

30 Rpm AC Synchronous Gear Motor, 24V/110V/220V

30 Rpm AC Synchronous Gear Motor, 24V/110V/220V
30 Rpm AC Synchronous Gear Motor, 24V/110V/220V
0 reviews • Write a review
from
$69.76
Ex Tax: $69.76
  • Stock: In Stock
  • Model: RDDLZ-60TYD-B30
  • Weight: 1.00
  • SKU: RDDLZ-60TYD-B30

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.

Specification

ModelRDDLZ-60TYD-B30
Duty TypeS1 ContinuesS2 (30 mins)
Voltage (AC)24V110V220V-240V24V110V220V-240V
Power Frequency50/60 Hz50/60 Hz
Output Speed30 rpm
Output Torque15 Kgf·cm20 Kgf·cm
Rated Speed1200 rpm1200 rpm
Input Power< 17W< 25W
Input Current< 0.65A< 0.15A< 0.08A< 1.5A< 0.35A< 0.2A
RotationCW/CCW (Reversible)CW/CCW (Reversible)
Operating Temperature-15 ~ 40℃-15 ~ 40℃
Coil Temperature Rise< 80K< 80K
Insulation ClassBB
Insulation StrengthAC 1500/ 50Hz/minAC 1500/ 50Hz/min
Recommended Capacitance47μF/ 63V2.2μF/ 250V0.56μF/ 450V67μF/ 63V3.0μF/ 250V0.8μF/ 450V

Dimension (Unit: mm)

Detail

Tips: Advantages of AC permanent magnet synchronous motor

  • The AC permanent magnet synchronous motor has high power efficiency and high power factor.
  • PMSM motor has small heating, so its cooling system has simple structure, small volume and low noise.
  • Its system adopts fully closed structure, no transmission gear wear and noise, no lubricating oil, no maintenance.
  • PM synchronous motor allows high overload current, which has apparent reliability.
  • It adopts permanent magnet pole, especially rare earth metal permanent magnet, such as NdFeB, which has high magnetic energy allowing it to obtain the higher air gap flux density. Therefore, in the same capacity, the synchronous motor is small in size and light in weight.
  • Its rotor has no collector ring and brush friction loss, so it has high operating efficiency.
  • It has small rotating inertia and allows high pulse torque to get higher accelerated speed.
