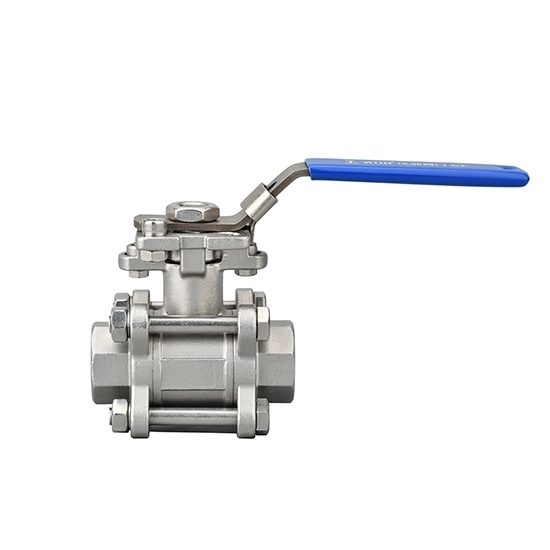

3-PC Stainless Steel Ball Valve, Full Port, 1000WOG

0 reviews • Write a review

from

$35.75

Ex Tax: $35.75

Stock: In Stock
Model: ATOWB-09
Weight: 1.00
SKU: ATOWB-09

Available Options

Short Description

Material

Thread

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3PC Platform Ball Valve Features

1000PSI/PN64.
Full port, blow-out proof stem, Investment casting body.
Higher strength and more corrosion resistant.
Three-piece full port ball valve is made of stainless steel 304/316.
Suitable medium: water, oil, air and some corrosive liquids.

3PC Platform Ball Valve Specifications

Model	RDDLZWB-09
Thread standard	NPT (Optional: BSPT, DIN259, DIN2999, ISO228, CLASS A)
Max pressure	6.4MPa
Temperature range	-20℃-+232℃
Suitable medium	water, oil, air and some corrosive liquids
Blow-out proof stem/ full port
Investment casting body
1000PSI (PN64) W.O.G
Material standard	S45C/ASTM A216Gr-WCB/DIN1.00619
	SS316/ASTM A351Gr-CF8M/DIN1.4408
	SS304/ASTM A351Gr-CF8/DIN1.4308

3PC Platform Ball Valve Main Parts and Materials

1	Body	CF8M/CF8
2	Ball	S304/S316
3	Bolt	SS304
4	Nut	SS304
5	Packing	PTFE/RPTFE
6	Stem	SS304/SS316
7	Gland	SS304
8	Nut	SS304
9	Cap	CF8/CF8M
10	Seat	PTFE/RPTFE
11	Thrust Washer	PTFE/RPTFE
12	Handle	S201
13	Handle Cover	PVC
14	Lock	S201

3PC Platform Ball Valve Main Outer Size

Size	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"
DN (mm)	15	20	25	32	40	50	65	80	100
DN (mm)	15	20	25	32	40	50	65	80	100
L±1.5 (mm)	65	74	84	98	112	125	185	205	240
H (mm)	63	74	90	90	116	116	143	153	167
T (mm)	131	131	167	167	194	194	244	263	285
C (mm)	9	9	11	11	14	14	17	17	17
Nm	3.5	6	6	7.5	18	28	32	38	80
IS05211	F03/F04	F03/F04	F04/F05	F04/F05	F05/F07	F05/F07	F07/F10	F07/F10	F07/F10
Kg	0.675	0.795	1.205	1.555	2.205	2.875	5.708	8.255	13.465
