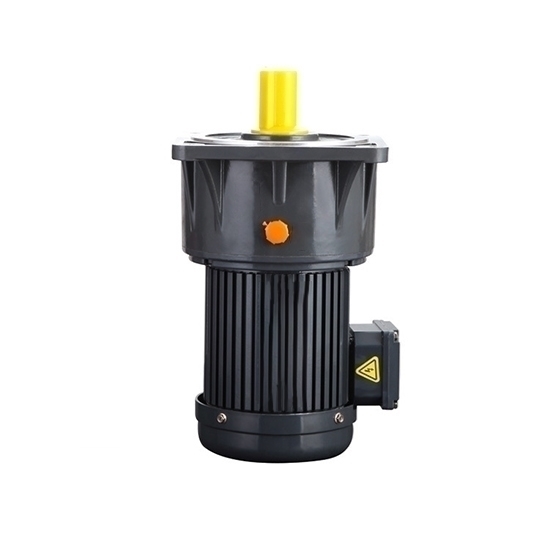

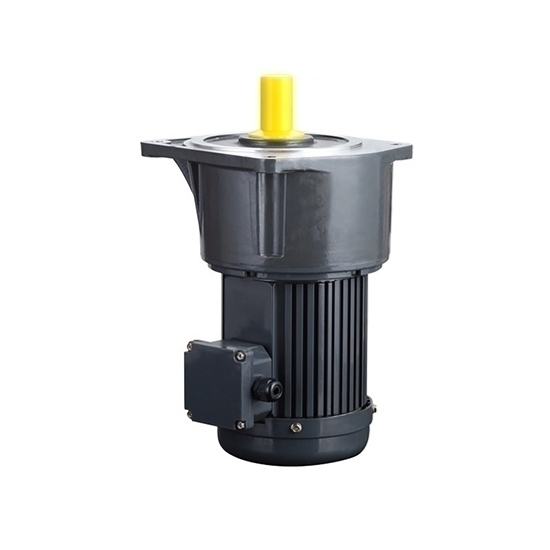

3 Hp (2.2kW) 3-Phase AC Gear Motor, Vertical, Ratio 3~100

0 reviews • Write a review

from

$1,678.31

Ex Tax: $1,678.31

Stock: In Stock
Model: RDDLZ-GEAR-HV2200
Weight: 1.00
SKU: RDDLZ-GEAR-HV2200

Available Options

Rated Voltage

Gear Ratio

Installation

Terminal Box Direction

Air Hole Direction

With Brake (DC 90V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

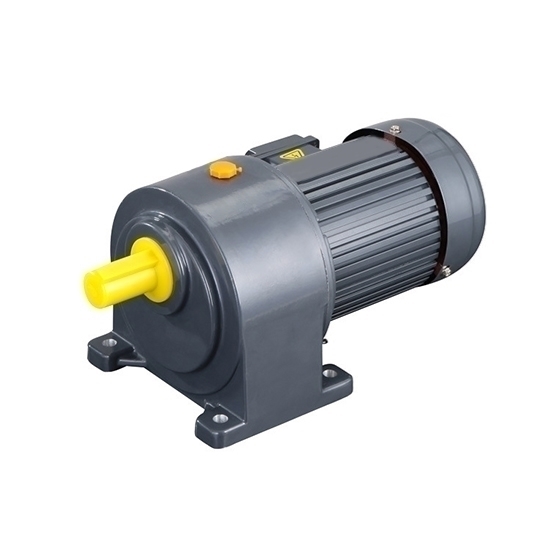

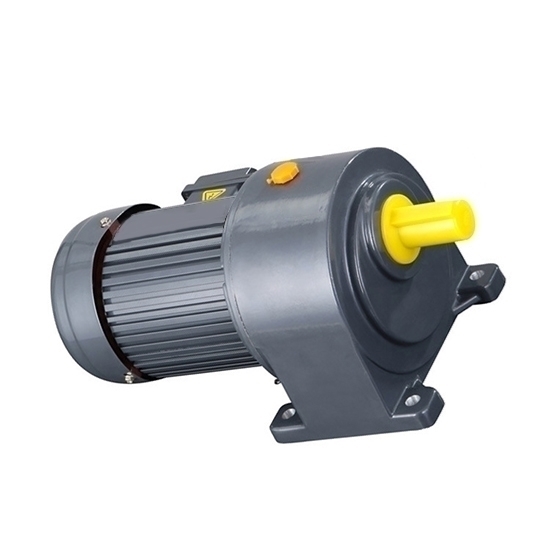

2200 watt 3-phase gear motor outputs high torque and low rpm, gear ratio is available in 3~100:1. The 3 hp gear reduction motor can be mounted in vertical or horizontal direction.

Basic Specification

Model: RDDLZ-CV40-2200（(Ratio:3~40), RDDLZ-CV50-2200（(Ratio:45~100)
Rated Power: 3 hp (2200W)
Rated Voltage: Optional 3-phase 220V/380-415V
Gear Ratio: 3~100:1
Working Efficiency: 75%
Insulation Grade: Class B, Class F can be customized
Protection Grade: IP54
Duty: Continuous running
Working Environment: Temperature 10℃~+40℃ and Humidity ≤90%
Pole: 4P (6P)
Working Height: ≤1000m
Standard: GB755/IEC-60034

Terminal Box Direction (From Output Shaft)

AC Gear Motor Standard Installation

All the RDDLZ 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

Details

Tips: 3-Phase AC gear motor troubleshooting.

Trouble		Cause Analysis	Solution
Noise	Knocking	Hurt Gear Surface	Replace Gear Set
	Continually	Bad Bearing	Replace Bearing
	Periodically	Particle Inside	Check Gear
	fizzing	Lack of Lubricant	Fill With Lub-Oil
	Intermittently	Dirty Lubricant	Replace Lubricant
Vibration	Mounting Base Vibration	Bad Surface Mounting	Re-Adjust Mounting Base
	Output Shaft Vibration	Bad Bearing	Replace Bearing
	Inside Gear Parts vibration	Gear Wounded	Replace Wounded Gear
	Housing Vibration	Bad Gear Assembly	Re-Adjust Gear Set
Leakage	Oil Seal Leakage	Oil Seal Too Harden	Replace Wounded Oil Seal
	Housing Leakage	Housing Had Sand Hole	Replace Sand Hole Housing
	Connect Surface Leakage	O-Ring Broken	Replace Wounded O-Ring
	Bad Oil Seal	Oil Seal Too Tight	Replace Tighten Oil Seal
Over Heating	Housing Too Heat	Over Load Running	Re-Calculate Loading
	Less Lubricant	Lack of Lubricant	FilI With Lubricant
	Motor Too Heat	Overload Motor	Replace New Motor
