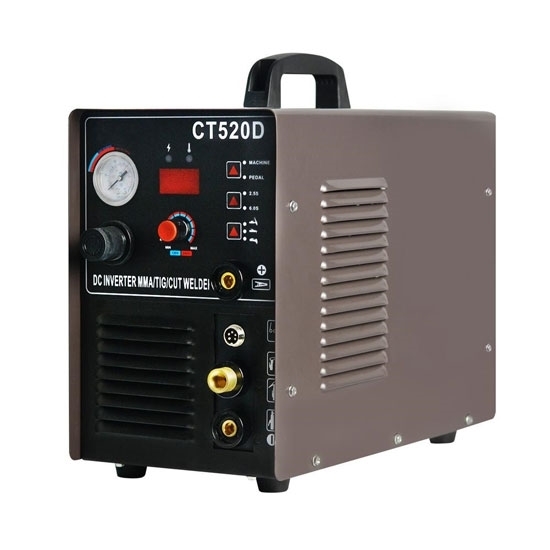

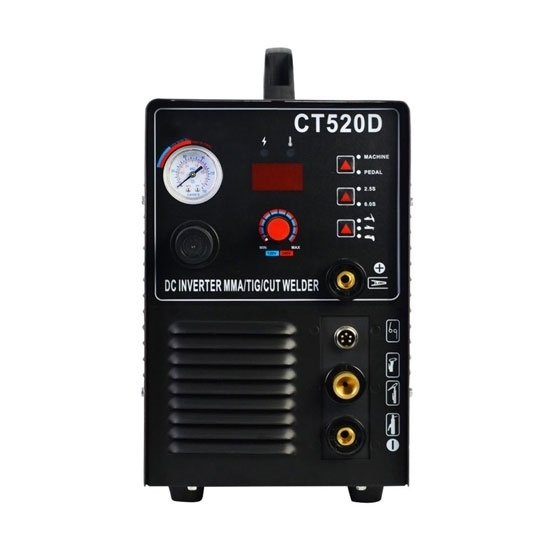

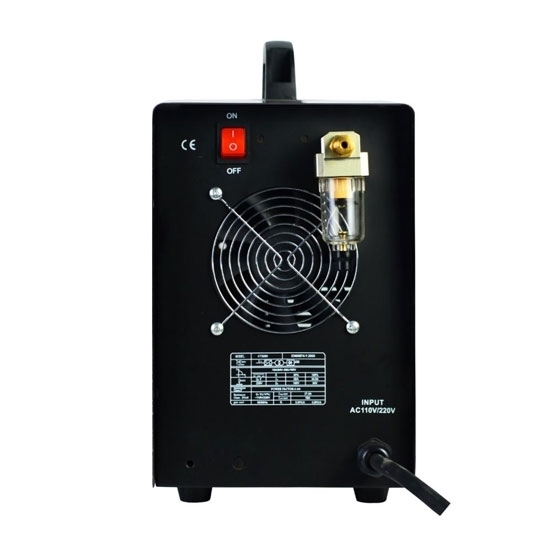

200A DC Arc Welder, Dual Voltage 110V/220V

0 reviews • Write a review

from

$1,079.56

Ex Tax: $1,079.56

Stock: In Stock
Model: RDDLZ-WM-CT520D
Weight: 1.00
SKU: RDDLZ-WM-CT520D

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200A multi process welder can select voltage 110V or 220V, 50Hz/60Hz, DC inverter welder has the characters of high efficiency, smooth cuts and low noise, affordable price, manufacturer direct sales.

Specifications

General	Model	RDDLZ-WM-CT520D
	Functions	50A Plasma Cutter
		200A TIG Welder
		200A STICK Welder
	Input Voltage	110V or 220V, 1-PH
	Frequency	50Hz/60Hz (Automatic dual frequency)
	Housing Protection	IP21
	Capacity	5.8 kVA
	Efficiency	85%
	Color	Brown

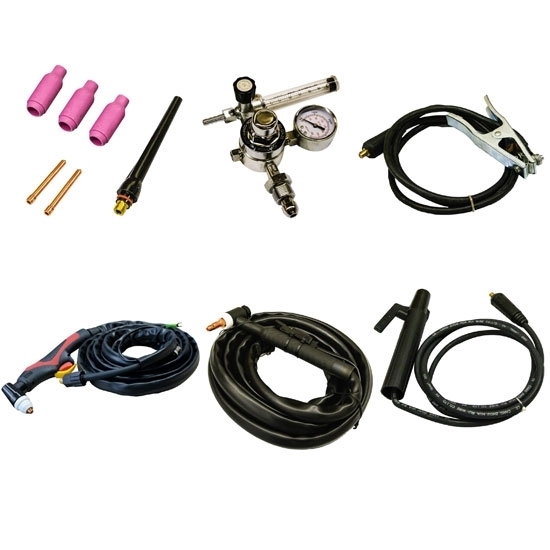

Accessories	Plasma Cutting Torch	50A, 12.5ft,(3.81m)
	Tig Welding Torch	200A,12.9ft,(3.93m)
	Arc/Stick Clamp	200A, 6.5ft, (1.98m)
	Argon Regulator	0-250 psi
	Air Regulator	0-150 psi
Plasma Cutting	Rated Input Power Requirement	120-220V, 1-PH, 27A+/-15%
	Frequency	50/60Hz (Automatic dual frequency)
	Output Current	10-50A at 220V, 10-25A at 110V
	Duty Cycle at 40℃(104°F）	60% at 50A ,100% at 40A
	Gas Supply Clean	Dry, Oil Free Air
	Recommended Gas Inlet Flow Rate/Pressure	3.6scfm at 65 psi 50L/min
	Max Rated Cutting Thickness	1/2 inches (12.7mm)
DC TIG Welding	Rated Input Power Requirement	120-220V, 1-PH, 17A+/-15%
	Frequency	50Hz/60Hz
	Output Current	10-200A at 220V 10-100A at 110V
	Duty Cycle at 40℃(104°F）	60% at 200A ,100% at 150A
	Gas Supply Clean	Dry, Oil Free Air
	Material Can Weld, Steel	Stainless, Moly, Ferrous
	No Load Voltage	62V
	Working Voltage	16.9V
	Starting Mechanism	High Frequency Start/ HF Welding
	Recommended Gas inlet Flow Rate/Pressure	2-5L/M
	Max Rated Cutting Thickness	1/2 inches (12.7mm)
DC STICK Welding	Rated Input Power Requirement	120-220V, 1-PH, 23A+/-15%
	Frequency	50Hz/60Hz
	Output Current	10-200A at 220V 10-80A at 110V
	Duty Cycle at 40℃(104°F）	60% at 200A ,100% at 95A
	Material Can Weld, Steel	Stainless, Moly, Ferrous
	No Load Voltage	62V
	Working Voltage	25V

Features:
1. MOSFET inverter, high frequency soft switches, high efficiency and reliability.
2. Welding parameters can be set accurately.
3. DC square wave for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals.
4. Easy arc starting, stable welding current, excellent square wave.
5. Fast response, little splashing, excellent welding appearance.
6. Suitable for welding stainless steel, mild steel, aluminum and other metal material.

Structure

Tips: Arc Welder Working Princeple
The arcing of argon arc welding adopts the arcing mode of high-voltage breakdown. First, high-frequency high-voltage is applied between the electrode needle (tungsten needle) and the workpiece, argon gas is broken down to make it conductive, and then a continuous current is supplied to ensure the arc is stable.
The working principle of the arc welder in the main circuit, the auxiliary power supply, the driving circuit and the protection circuit is the same as that of the hand arc welding machine.
