32x32 Mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

0 reviews • Write a review

from

$469.21

Ex Tax: $469.21

Stock: In Stock
Model: RDDLZ-HD-3232
Weight: 1.00
SKU: RDDLZ-HD-3232

Available Options

Gear Ratio

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

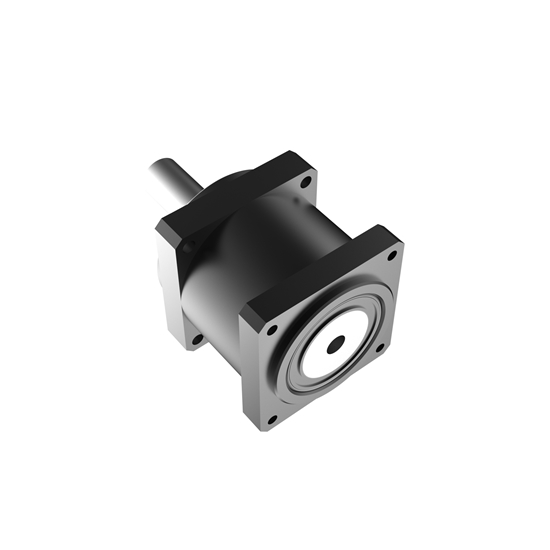

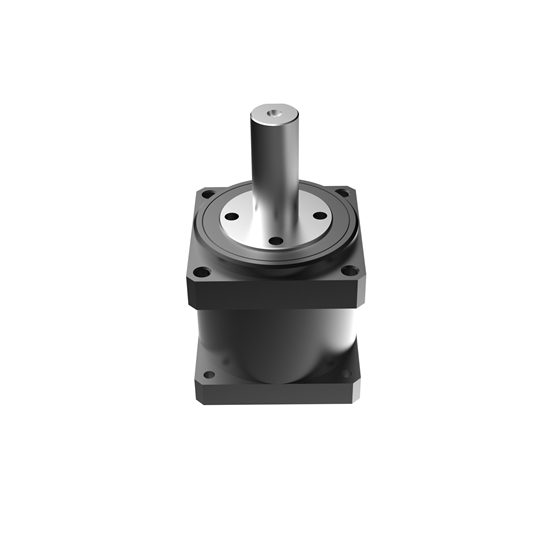

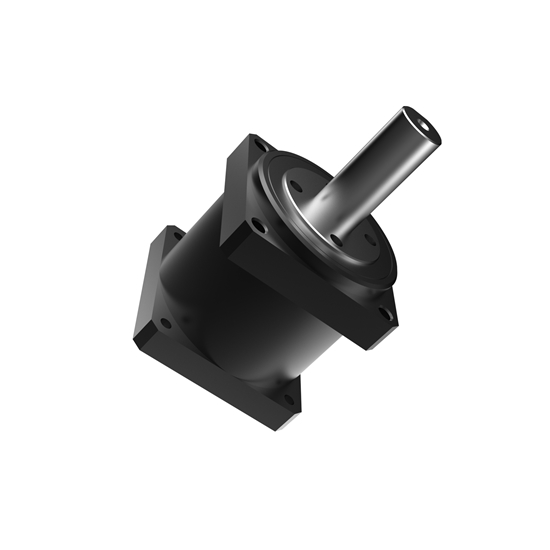

Factory price 32x32 mm strain wave harmonic drive gearbox is designed for industrial robots, CNC equipment, medical instruments, and the military industry. 30/50/80/100 gear ratios are available. Small strain wave gear can provide harmonic gear reduction, but can also be used to increase rotation speed.

Features

It is a strain wave harmonic drive gearbox with high rigidity, no gear backlash and coaxial input and output.
The gearbox features excellent positioning accuracy and rotation accuracy.
Harmonic reducer with a high torque capacity and a high gear ratio is available.
32x32 mm strain wave gearbox is designed for robots.

Specifications

Model: RDDLZ-CSF-08-XX-1U-C
Output/Input: Motor direct connection input, Shaft output
Diameter: 32x32 mm
Thickness: 30 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Tooth Surface Hardness: Hard Tooth Surface
Layout Form: Coaxial
Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80	100
Rated torque when input 2000r/min (N.m)	0.9	1.8	2.2	2.4
Allowable peak torque at start and stop (N.m)	1.8	3.3	4.3	4.8
Maximum allowable average load torque (N.m)	1.4	2.3	2.9	3.3
Momentary allowable maximum torque (N.m)	3.3	6.6	8	9
Allowable maximum input speed (r/min)	8500
Allowable average input speed (r/min)	3500
Moment of inertia (1/4GD) (kgcm²)	3.2x10^-3
Arc seconds	≤20		≤10

Dimensions (unit: mm)

Harmonic Drive Gearbox Applications

RDDLZ harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Tips: Why should the harmonic drive gearbox be connected to the motor?

A harmonic drive gearbox is a gear reducer with a new type of transmission structure, which is composed of a rigid wheel, a flexible wheel and a wave generator. Generally speaking, a harmonic drive gearbox is used in conjunction with a motor, so the harmonic drive gearbox is connected What is the function of the motor? This is to ensure that the motor runs at an appropriate speed, and accurately reduces the motor speed to the speed required by the equipment, thereby increasing the rigidity of the mechanical body and outputting greater torque.
