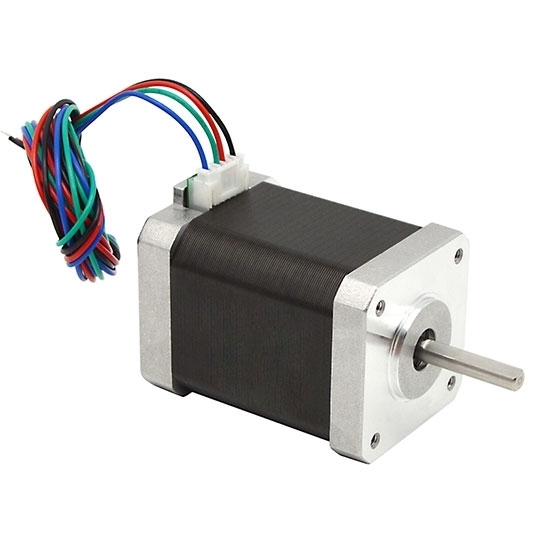

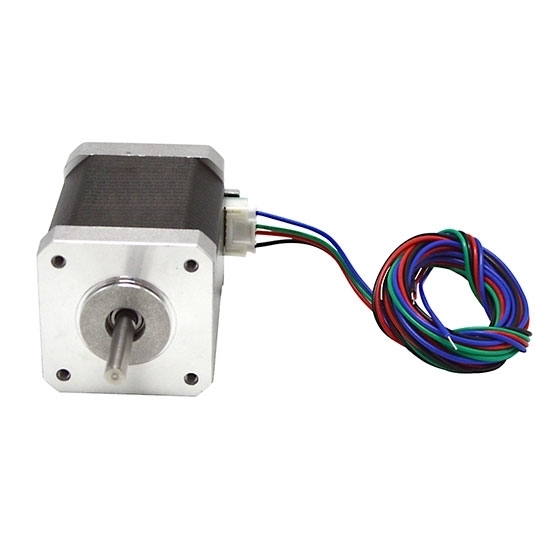

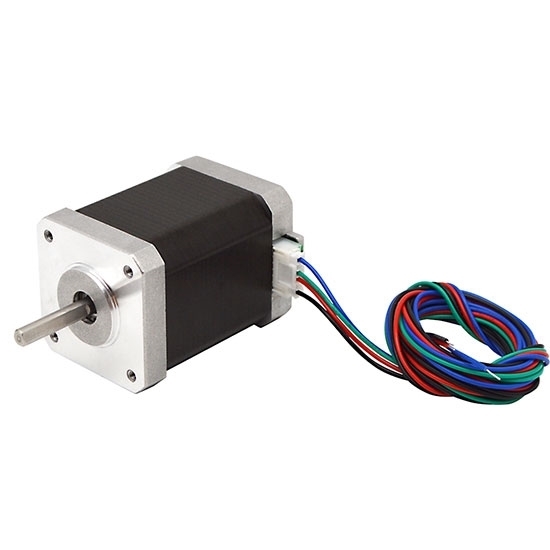

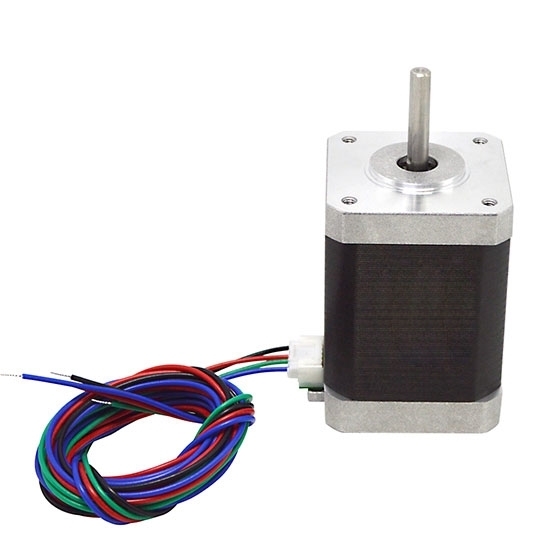

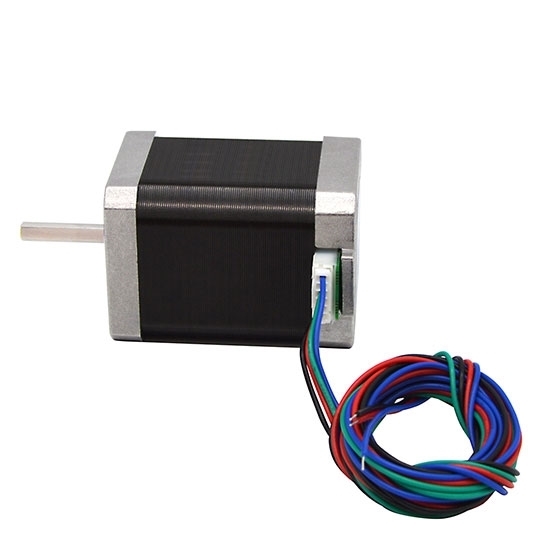

Nema 17 Stepper Motor, 2 Phase, 0.8A, 0.16N·m

0 reviews • Write a review

from

$59.39

Ex Tax: $59.39

Stock: In Stock
Model: RDDLZ-STEP-17X080
Weight: 1.00
SKU: RDDLZ-STEP-17X080

Available Options

Input Pulse Voltage

With Matched Driver

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost Nema 17 hybrid stepper motor for sale, precise positioning, fast response and high torque. This permanent magnet stepper motor is widely used in CNC router, electronic equipment, textile equipment and medical equipment, etc.

Physical Specification

Model Number: RDDLZ-FY42EX080A
Matched the Driver Model: RDDLZ-FYQM302A
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 30mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.2 kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 0.8A
Holding Torque: 0.16 N·m (16 N·cm, 23 Oz.in)
Phase Resistance: 3.8Ω
Phase Inductance: 4.5mH
Rotor Inertia: 30g·cm²

Dimensions (Unit: mm)

L=30mm

Speed-Torque Curve Diagram

Details

Tips: Why do you need a hybrid stepper motor?

Best hybrid stepper motor is an electric motor specially used for precise control of position and speed. The features of stepper motors are "digital" and "error non-accumulation." For each pulse signal sent by the controller, the stepper motor rotates at a fixed angle under the action of its driver, and the rotation of the stepper motor runs step by step at this fixed angle. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, and you can control the speed and acceleration of the motor rotation by controlling the pulse frequency, so as to achieve the purpose of speed regulation. It is widely used in various open-loop control by using the characteristic that the stepper motor does not accumulate errors.
