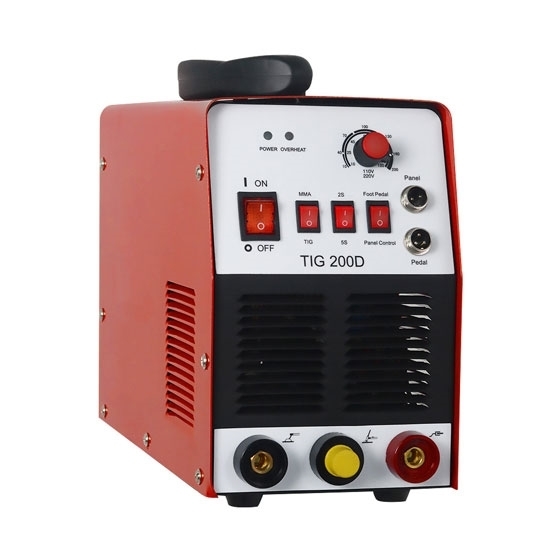

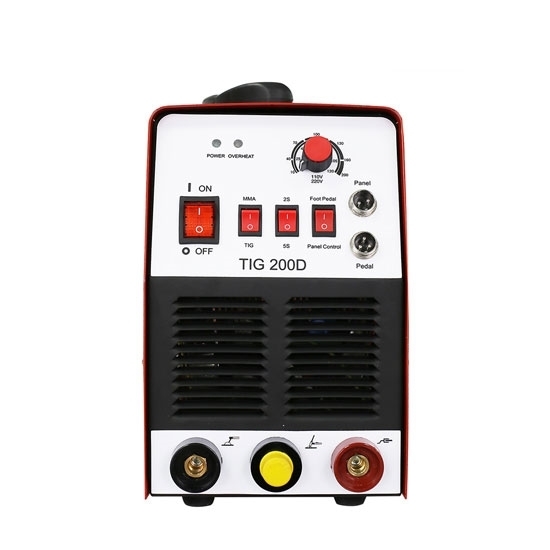

200Amp Stick Welder, DC Dual Voltage 110V/220V

0 reviews • Write a review

from

$860.26

Ex Tax: $860.26

Stock: In Stock
Model: RDDLZ-WM-TIG200
Weight: 1.00
SKU: RDDLZ-WM-TIG200

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mig welder for sale, 200 amp, 50/60Hz, 110V 220V DC voltage can be selected, stick welding machine can be used for welding stainless steel, mild steel, aluminum and other metal material.

Specifications

Model	RDDLZ-WM-TIG200A
Input Voltage	DC 110V/220V, +/15%, 1-PH, 50Hz/60Hz (Automatic dual frequency)
Input Current	7A at 110V,
Input Current	34A at 220V
Output Current	10-190A at 220V, 10-120A at 110V
Power	5.7 kVA
Power Factor	0.73
Duty Cycle at 40℃(104℉)	60%
Frequency	50Hz/60Hz (Automatic dual frequency)
Recommended gas inlet flow rate / pressure	3.6scfm at 65psi
Dimension	771mm330mm432mm
Weight	17kg
Cutting Material	Mild Steel, Stainless Steel, Aluminum, etc
Welding Thickness	6mm
Gas Supply	Clean, Dry, Oil-Free Argon
Color	Red
Warranty	12 Months

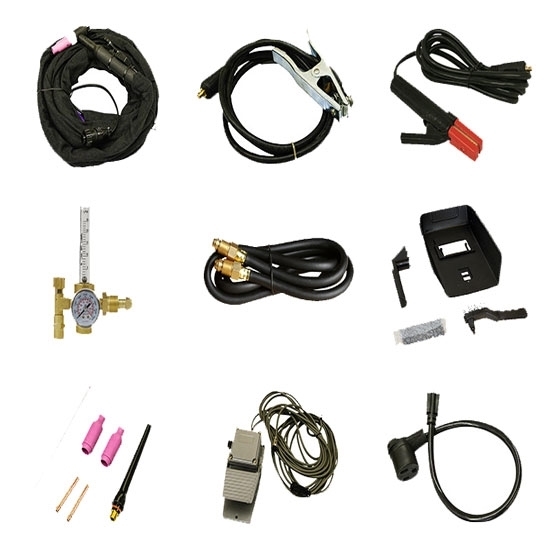

Packing List
1. TIG torch TT132 (13ft long, 2 pin connection).
2. TIG torch accessories similar to model TA01 (includes: 2 pieces of shield cups, 2 collets, 1 collet body and 1 DC tungsten tlectrode stick).
3. Stick welding electrode holder (9ft long). Ground cable & clamp (6ft long). Argon hose (4ft long).
4. Foot pedal FP23 (3 pin connection).
5. Pigtail adaptor PT02 (converts 220V to 110V).
6. Hand held shield with cleaning wire brush and user manual.

200A Stick Welder Features:
1. 200 Amp DC square-wave inverter TIG/STICK (MMA) welder
2. Automatic dual voltage/ dual frequency (110/220Volt 50/60Hz)
3. High frequency start hand torch control and precise foot pedal welding heat control
4. Suitable for welding stainless steel, mild steel, aluminum and other metal materials.

Structure

Tip: Stick Welder Working Principle
The stick welder uses the high-temperature arc generated by the positive and negative poles in an instantaneous short-circuit to melt the solder and the material to be welded on the electrode to achieve the purpose of combining them. The structure is very simple, it is a high-power transformer. The welding machine can be divided into two types according to the type of output power. One is AC stick welder, and the other is DC stick welder.
