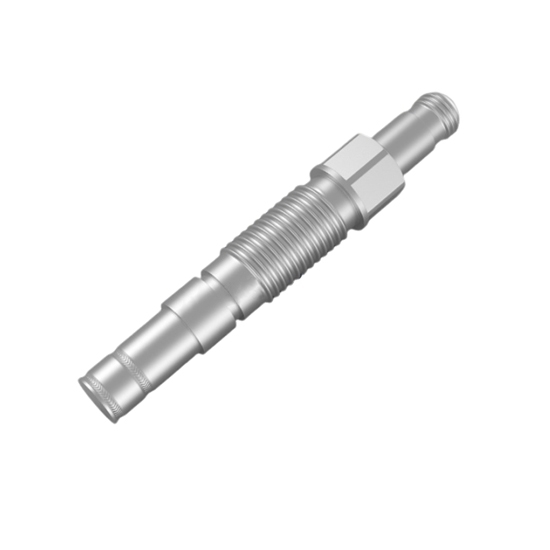

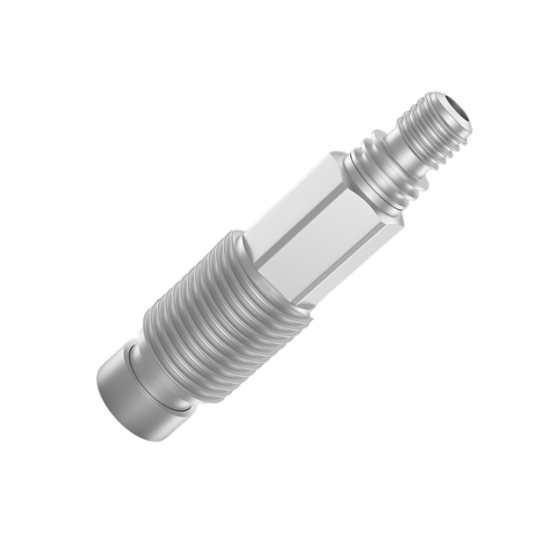

High Accuracy Piezoelectric Pressure Sensor, 10/50/100/200/400/600 MPa

0 reviews • Write a review

from

$531.53

Ex Tax: $531.53

Stock: In Stock
Model: RDDLZ-PPS-SAYL
Weight: 1.00
SKU: RDDLZ-PPS-SAYL

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High precision pressure sensor for sale online. It is a stainless steel piezoelectric pressure transducer that can measure pipeline pressure and explosion pressure in the range of 10/50/100/200/400/600 MPa.

Specifications

Model	SAYL201Y	SAYL202Y	SAYL203Y	SAYL104-1Y	SAYL104-2Y	SAYL104-3Y
Measurement Range	200 MPa	400 MPa	600 MPa	10 MPa	50 MPa	100 MPa
Sensitivity	~30 pC/MPa		~20 pC/MPa	35 pC/MPa
Frequency Response	≥200 KHz			≥350 KHz		≥400 KHz
Non-Linearity	≤1%	≤1.5%		≤1%
Mounting Output Method	M5			L5
Mounting Dimension	M10*1			Tooling
Weight	12g			3g
Operating Temperature	-40~150 ℃
Shell Material	High-Strength Stainless Steel
Rise Time	~2 uS
Piezoelectric Material	Quartz
Overload Capacity	120%

Note: If you need charge signal output or ICP voltage signal output, please contact us.

Dimensions (Unit: mm)

Tips: Piezoelectric Pressure Sensor Working Principle

Piezoelectric pressure sensors operate on the principle of piezoelectricity, a property of certain materials that generate an electric charge in response to applied mechanical stress. When pressure is exerted on the piezoelectric material, it deforms slightly, causing a change in the charge distribution within the material, which results in the generation of a voltage across the material's surface. This voltage is proportional to the applied pressure. The sensor's output is typically calibrated to provide a direct reading of pressure in units such as pascals, bar, or pounds per square inch. The main advantage of piezoelectric sensors is their fast response time, making them suitable for dynamic pressure measurements. However, they are sensitive to temperature changes and may require compensation to ensure accurate readings.
