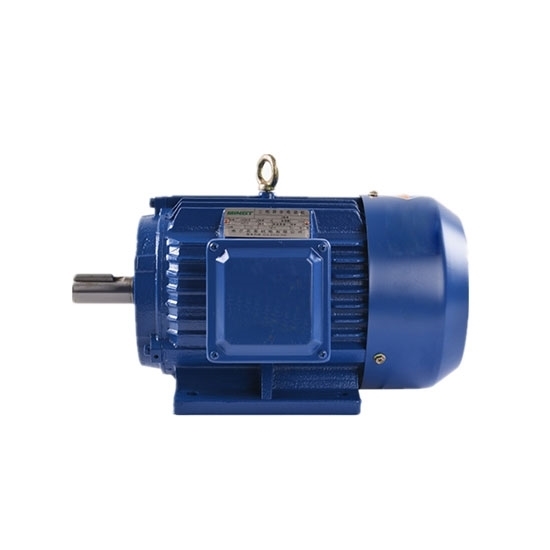

3 Hp (2.2kW) 3 Phase 6 Pole AC Induction Motor

0 reviews • Write a review

from

$675.06

Ex Tax: $675.06

Stock: In Stock
Model: RDDLZ-IM-22006P
Weight: 1.00
SKU: RDDLZ-IM-22006P

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This is 3-phase 6-pole AC induction motor or asynchronous motor with 3 hp (2.2kW) output and 940rpm speed, which can be widely used in various kinds of general purpose machineries like fans, pumps, compressors, gearboxes, machine tools, transportation and so on. Low price and easy maintenance.

3hp Induction Motor Specification

Basics	Model	RDDLZ-Y2-112M-6
	Design Standard	IEC
	Weight	37kg
	Frame Type	112M
	Mounting	Horizontal Foot Mounting (B3)
	Wiring Method	Output≤4hp (3kW), Y connection Output≥5.5hp (4kW), Delta connection
	Degree of protection	IP54/IP55
	Insulation Class	Class F
	Cooling	TEFC (compliance to IC 411 code of IEC 60034-6)
Technical Parameters	Nominal Output	3hp or 2.2kW
	Pole Number	6-pole
	Nominal Speed	940rpm
	Frequency	50Hz
	Nominal Voltage	380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
	Nominal Current (full load)	5.57A/9.65A
	Efficiency	79%
	Power Factor( cosφ)	0.76
	Nominal Torque (Tn)	22.35Nm
	Locked Rotor Torque/Nominal Torque (TST/Tn)	2.0
	Maximum Torque/Nominal Torque (Tmax/Tn)	2.1
	Locked Rotor Current/Nominal Current (IST/In)	6.5
	Noise Level	65dB/(A)
Environment	Ambient Temperature	-15℃+40℃
	Altitude	Less than 1000m above sea level

Three-phase Induction Motor Dimensions

Frame Type	Mounting Dimensions (mm)										Overall Dimensions
Frame Type	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
112M	190	95	140	70	28	60	8	24	112	12	230	240	190	300	400

Wiring Diagrams (Three-phase squirrel-cage induction motor)

Details

Tips: Asynchronous motors versus synchronous motors
1. Principle
Induction motor refers that under the effect of two magnetic fields both the rotating magnetic field generated by alternating currents access to stator and the magnetic field produced by the rotor affected, the rotor rotates with the rotating magnetic field of stator. The magnetic field of rotor is slower than the one of stator thus there is a slip. Due to its non-synchronous, it is called as asynchronous motor.
Synchronous motor refers that under a constant magnetic field formed by man-made direct current the rotor synchronously rotates with the rotating magnetic field of stator.
2. Structure
Stator windings are the same between synchronous and induction motor, but the main difference is the rotor structure.
For the synchronous motor, as for DC excitation windings of rotor, the current is introduced by slip rings under the effect of external excitation power supply. Since rotor windings of induction motor is short-circuited and the current is generated by electromagnetic induction.
3. Usage
Synchronous motors are mainly introduced into large size generators, while almost all induction motors are run in electric motors.
