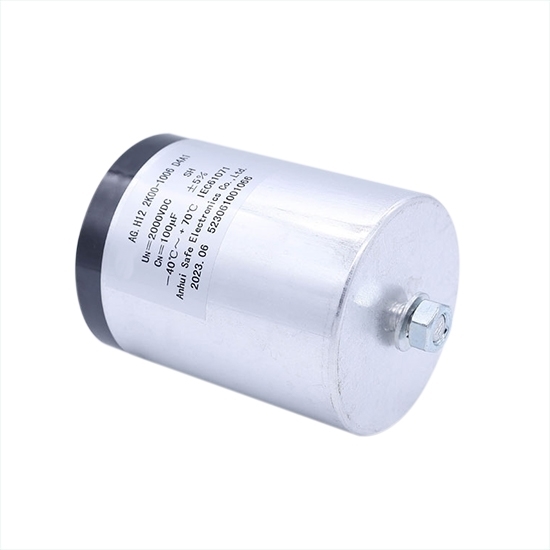

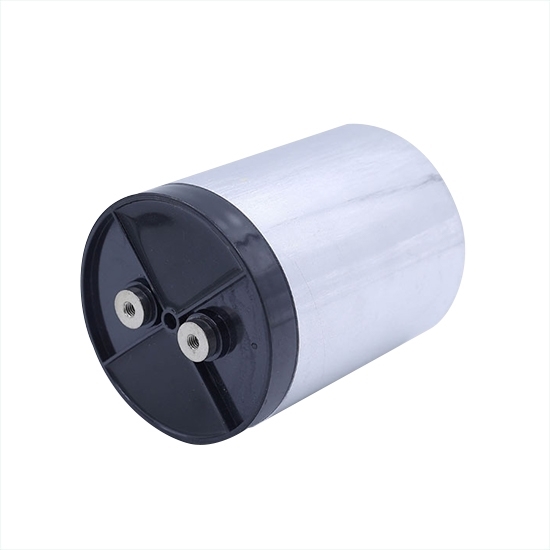

DC-Link Capacitor, 50-420μF, 1100V/2000V

0 reviews • Write a review

from

$75.23

Ex Tax: $75.23

Stock: In Stock
Model: RDDLZ-DCL-C
Weight: 1.00
SKU: RDDLZ-DCL-C

Available Options

Short Description

Capacitance

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC-link film capacitors can effectively suppress voltage fluctuations and filter high-frequency noise in the DC support filter circuit of wind power generation, solar power generation and other industrial frequency converters, thereby improving the efficiency of power conversion.

Features

DC-link film capacitors can be used in DC filter circuits to replace traditional electrolytic capacitors and provide more stable and efficient filtering effects.
It has a small equivalent series resistance, can withstand large ripple current, reduce energy loss and improve system efficiency.
The DC-link capacitor has low self-inductance, suitable for high-frequency applications, ensuring fast response and stable operation.
It has self-healing properties, which can repair minor damage caused by overvoltage or other abnormal conditions to a certain extent and extend service life.
The aluminum shell design and resin potting process of the capacitor provide good mechanical strength and resistance to environmental interference.

Specification

Model	DC-LINK-50UF	DC-LINK-60UF	DC-LINK-80UF	DC-LINK-100UF	DC-LINK-200UF	DC-LINK-420UF
Capacitance	50μF	60μF	80μF	100μF	200μF	420μF
Rated voltage	2000V					1100V
Size (mm)	86*130	86*130	86*150	86*175	116*180	86*135
Equivalent resistance (RS)	4.8	4.2	4.4	3.5	2.9	2.3
Maximum current (Imax)	55	55	48	65	70	65
Chargeable and dischargeable current (I (KA))	2.03	2.13	3.2	3.63	7.3	2.08
Energy (WN (WS))	90	110	150	190	390	250
‌Inductance (Ls (nH))	65	65	65	60	55	55
Standards	IEC 61071, IEC 61881
Operating temperature (case)	-40℃ to +70℃
Storage temperature	-40℃ to +85℃
Hot spot temperature	≤85℃
Capacitor tolerance	±5% or ±10%
Dissipation	2x10^-3 (100Hz, 20℃)
Permissible relative humidity	Annual average humidity 75%, 30 days/year
Permissible capacitance change	Maximum deviation ±1.5% relative to 20℃ measurement value (when operating at -25℃ to +70℃)
Case composition	Aluminum housing, plastic housing, 304 stainless steel housing
Terminals	Tinned copper screw
Mounting position	Any position
Expected life	≥100.000 hours at Un
Failure rate	50 FIT
Recommended connection torque	Internal thread M6-3Nm, M8-6Nm

Applications

Tips: What is a DC-link capacitor?

DC-link capacitors are capacitors used in direct current (DC) circuits, mainly used in DC support filter circuits in power electronic equipment. Its main function is to stabilize the DC voltage in the circuit, reduce voltage fluctuations and high-frequency noise, and smooth the current waveform to ensure the stability and efficiency of the system. DC-link capacitors play an important role in renewable energy systems (such as wind and solar power generation) as well as industrial inverters, power converters and other applications.
