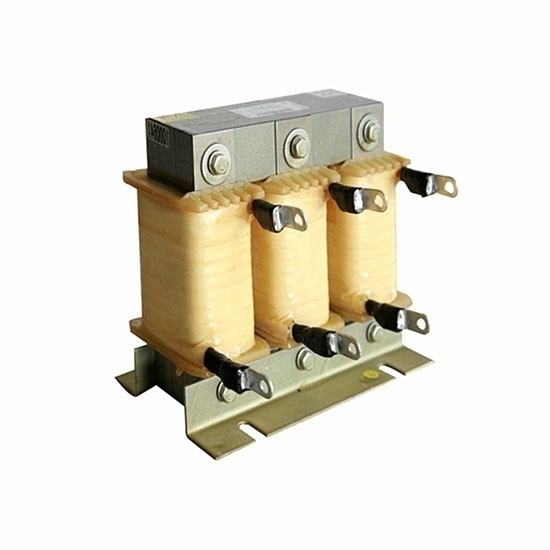

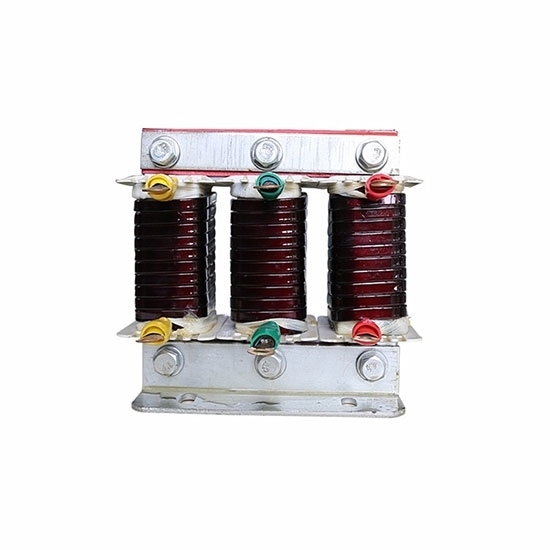

3 Hp (2.2 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$244.54

Ex Tax: $244.54

Stock: In Stock
Model: RDDLZ-ILR-2d2
Weight: 1.00
SKU: RDDLZ-ILR-2d2

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

7 Amps favorable price 3 hp AC input line reactor, 3 phase, 2.2 kW, voltage 220V, 240V, 400V, 415V, 440V and 480V are availeble, with 50Hz/60 Hz working frequency, impact resistance, high structural strength and high quality.

3 hp Input Line Reactor Specifications

Basic	Model	RDDLZ-ACR-0007-2M00-0.4SC
	Recommended VFD Model	GK3000-4T0022G (3 hp three phase VFD)
	Phase	3 Phase
	Power	3 hp (2.2 kW)
	Weight	2.6 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	7 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	2 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3 hp Input Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
115mm	90mm	95mm	68mm	135mm	6×11

Tips: What about local heating of line reactor?

If input AC line reactor has local heating, reduce the loads of input line reactor and strengthen ventilation. If necessary, take temporary measures to strengthen the fan cooling of the powerful fan, and then eliminate the defect when there is a chance to power off.
