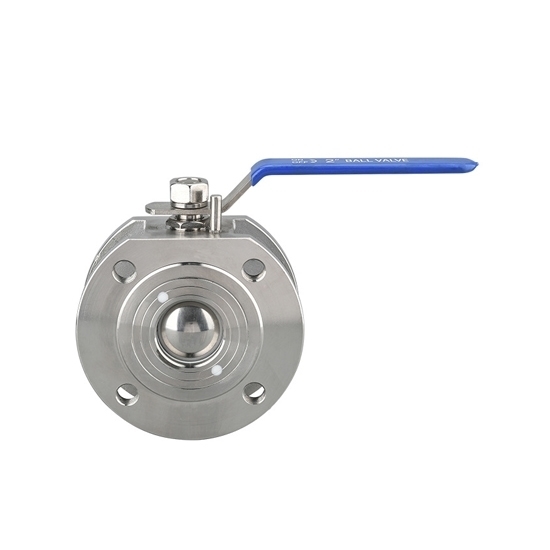

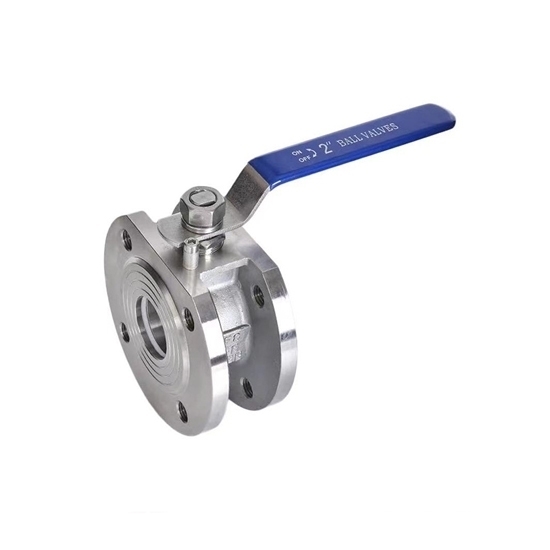

3/4" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$118.19

Ex Tax: $118.19

Stock: In Stock
Model: RDDLZ-WBV-DN20
Weight: 1.00
SKU: RDDLZ-WBV-DN20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

RDDLZ stainless steel wafer ball valve can come with various actuation methods, such as manual (lever or gear), electric, or pneumatic actuators, depending on the specific application requirements.

Specification

Model: RDDLZ-Q71F-PN16-DN20
Type: Wafer Type Flanged Ball Valve
Port Size: 3/4 inch (DN20)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN20	20	18	105	75	58	14	2	37.5	40.5	110	4-φ12

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: Can I use a wafer ball valve for the main water shut-off?

Using a wafer ball valve for the main water shut-off can be a viable option depending on specific requirements. Wafer ball valves are compact and suitable for applications with limited space. However, ensure the valve meets the necessary pressure and temperature ratings for your main water supply. Additionally, consider factors such as the material of the valve, installation conditions, and local plumbing codes. It's crucial to select a valve that complies with industry standards and is appropriate for the intended use. Consulting with a professional plumber or adhering to local regulations will help ensure the safety and effectiveness of using a wafer ball valve for your main water shut-off. Regular maintenance and periodic inspections are essential to guarantee the valve's reliable performance over time.
