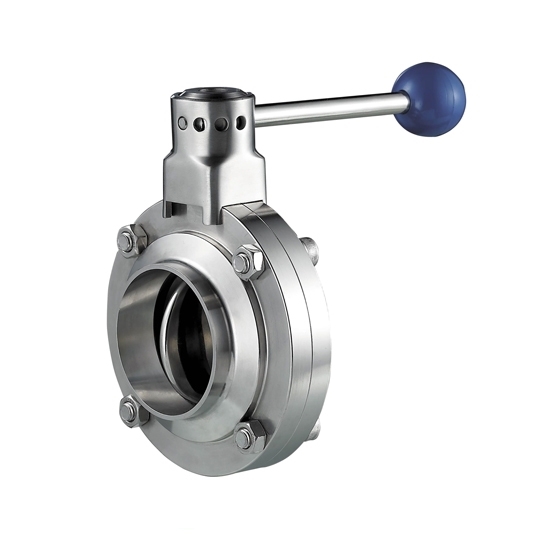

3/4 Inch Stainless Steel Sanitary Butterfly Valve

0 reviews • Write a review

from

$89.99

Ex Tax: $89.99

Stock: In Stock
Model: RDDLZ-BV-34I
Weight: 1.00
SKU: RDDLZ-BV-34I

Available Options

Short Description

Connection Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

Specification

Model	RDDLZ-BV-34I
Type	SS Sanitary Butterfly Valve
Size	3/4 inch

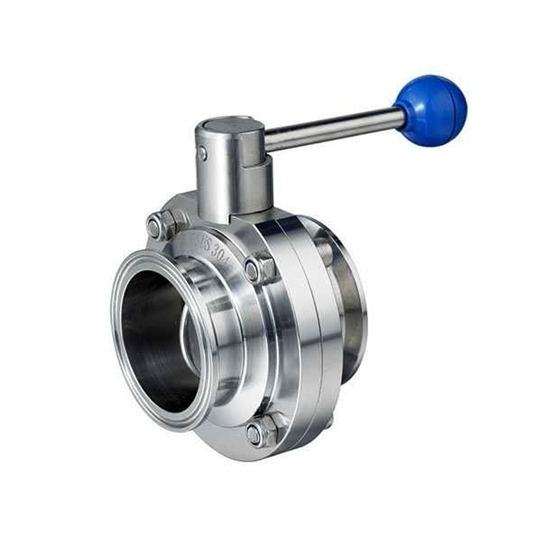

Connection Method (Optional)	Welded End/ Quick Connect End
Drive Method	Manual
Body Material	304 Stainless Steel (Default) / 316 Stainless Steel
Washer and Gasket	EPDM Comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Weight	1.5 kg
Certificate	PED97-23EC, FDA.177.2600

Dimensions (Unit: mm)

Size	Dn	D	D1	J	H	H1	A1	A2
3/4 inch	16.1	19.1	25.4	126	40	43.5	50	66

Tips: Functions of sanitary butterfly valves

The opening and closing part of the sanitary butterfly valve is a disc-mounted valve plate, which rotates around its own axis in the valve body during operation, so as to achieve the purpose of opening and adjustment. The working angle of sanitary butterfly valve from fully open to fully closed is usually less than 90°. Usually, the butterfly valve and the disc rod itself have no self-locking ability. For the positioning of the disc, a turbo reducer must be installed on the valve rod. If a turbo reducer is used, not only can the disc have the self-locking ability, but also the operation of the butterfly valve can be more convenient.
