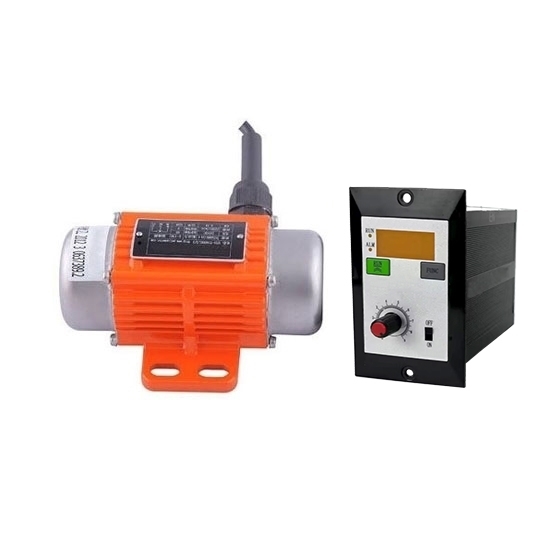

25W 24 Volt DC Brushless Vibrating Electric Motor With Controller

25W 24 Volt DC Brushless Vibrating Electric Motor With Controller
25W 24 Volt DC Brushless Vibrating Electric Motor With Controller
0 reviews • Write a review
from
$500.41
Ex Tax: $500.41
  • Stock: In Stock
  • Model: RDDLZ-25DCBVM-244
  • Weight: 1.00
  • SKU: RDDLZ-25DCBVM-244

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a 25W 3000rpm 24 volt DC brushless vibration motor at factory price. It comes with 0.6A current, 3000rpm rated speed, IP 65 dustproof and waterproof level, 0.4 kN force, small size and lightweight, manufacturer direct sale.

Features

  • 25W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
  • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
  • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
  • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
  • Special voltage and speed can be customized, please contact us.

Specifications

ModelRDDLZ-25DCBVM-244
Voltage24V
Rated Speed3000rpm
Current0.6A
Power25W
Force0.4 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection RankIP65 (Dustproof and Waterproof)
Insulation GradeF (The Highest Heat Resistant Temperature is 155℃)
Cooling ModeNatural Cooling (IC410)
Working SystemS1 (Continuous Duty)
Weight1.8 kg
Dimensions146mm x 110mm x 69mm
Frame No4
CertificateCE

Notes

  1. +/- 20% voltage tolerance.
  2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

Dimension (Unit: mm)

Frame NoABCDEFGHIJKLMN
414611068.5960.427.54527.530.591.5917.555M-16


Internal Structure

Applications

RDDLZ 25W 24V 3000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: Why buy a 25W DC brushless electric vibration Motor?

  1. This DC brushless vibration electric motor can replace DC motor speed regulation, frequency converter+frequency conversion motor speed regulation, and asynchronous motor+reducer speed regulation.
  2. 25W 24V DC vibration motor has the advantages of traditional DC motor and eliminates the structure of carbon brush and slip ring.
  3. DC vibration motor can run at low speed and high power and can drive large loads directly without a reducer.
  4. Excellent torque characteristics, medium and low-speed torque performance, large starting torque, small starting current.
  5. Small size, light weight, large output. Stepless speed regulation, wide range of speed regulation, strong overload capacity.
  6. Soft start and stop, braking characteristics, can save the original mechanical braking or electromagnetic braking device.
